LM358DR

Product Summary

The LM358DR is a high gain, internally frequency compensated operational amplifier which is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The LM358DR’s Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM358DR can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies. The LM358DR is available in a chip sized package (8-Bump micro SMD) using National’s micro SMD package technology.

Parametrics

LM358DR absolute maximum ratings: (1)Supply Voltage, V+: 32V; (2)Differential Input Voltage: 32V; (3)Input Voltage: -0.3V to +32V; (4)Power Dissipation: 830mW; (5)Output Short-Circuit to GND (One Amplifier) V+ ≤ 15V and TA = 25℃: Continuous; (6)Input Current (VIN < -0.3V): 50 mA; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature, DIP (Soldering, 10 seconds): 260℃; (10)Lead Temperature, Metal Can (Soldering, 10 seconds): 300℃; (11)Soldering Dual-In-Line Package (10 seconds): 260℃; (12)Small Outline Package Vapor Phase (60 seconds): 215℃; (13)Small Outline Package Infrared (15 seconds): 220℃.

Features

LM358DR features: (1)Available in 8-Bump micro SMD chip sized package,; (2)Internally frequency compensated for unity gain; (3)Large dc voltage gain: 100 dB; (4)Wide bandwidth (unity gain): 1 MHz (temperature compensated); (5)Wide power supply range: Single supply 3V to 32V, dual supplies ±1.5V to ±16V; (6)Very low supply current drain (500 μA)—essentially independent of supply voltage; (7)Low input offset voltage: 2 mV; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing.

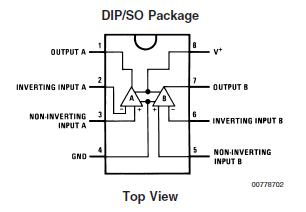

Diagrams
