Product Summary

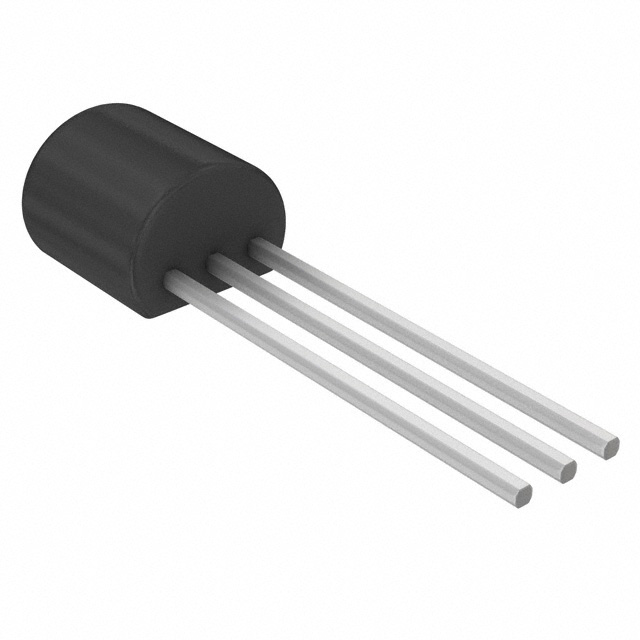

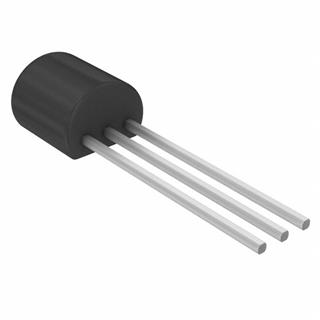

The LM385BZ-1.2 is a micropower 2-terminal band-gap voltage regulator diode. Operating over a 10μA to 20mA current range, it features exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The LM385BZ-1.2 can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life. Further, the wide operating current allows it to replace older references with a tighter tolerance part. The LM385BZ-1.2 is operated from 0℃ to 70℃ and is available in a low-cost TO-92 molded package.

Parametrics

LM385BZ-1.2 absolute maximum ratings: (1)Reverse Current: 30mA; (2)Forward Current: 10mA; (3)Operating Temperature Range: 0℃ to 70℃; (4)Storage Temperature: 55℃ to +150℃; (5)Soldering Information: 10 sec. 260℃; (6)TO-46 package: 10 sec. 300℃.

Features

LM385BZ-1.2 features: (1)±1% and 2% initial tolerance; (2)Operating current of 10μA to 20mA; (3)1Ω dynamic impedance; (4)Low temperature coefficient; (5)Low voltage reference—1.235V.

Diagrams

LM385BZ-1.2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM385BZ-1.2
LM385BZ-1.2

National Semiconductor (TI)

Voltage & Current References

Data Sheet

0-1800: $0.26
1800-3600: $0.24
3600-5400: $0.23
5400-10800: $0.22
LM385BZ-1.2#PBF
LM385BZ-1.2#PBF

Linear Technology

IC PREC VOLTAGE REF 1.2V TO-92-3

Data Sheet

1-2500: $0.66
LM385BZ-1.2G
LM385BZ-1.2G

ON Semiconductor

Voltage & Current References 1.2V 10uA-20mA

Data Sheet

0-1: $0.40
1-25: $0.34
25-100: $0.24
100-500: $0.20
LM385BZ-1.2/NOPB
LM385BZ-1.2/NOPB

National Semiconductor (TI)

Voltage & Current References

Data Sheet

0-1: $0.61
1-25: $0.49
25-100: $0.43
100-250: $0.38
LM385BZ-1.2/LFT7
LM385BZ-1.2/LFT7

National Semiconductor (TI)

Voltage & Current References

Data Sheet

0-2000: $0.32
2000-4000: $0.30
4000-6000: $0.29
6000-10000: $0.28
LM385BZ-1.2#TRPBF
LM385BZ-1.2#TRPBF

Linear Technology

IC PREC VOLTAGE REF 1.2V TO-92-3

Data Sheet

1-4000: $0.73
LM385BZ-1.2RAG
LM385BZ-1.2RAG

ON Semiconductor

Voltage & Current References V-REG DIODE

Data Sheet

0-1: $0.57
1-25: $0.46
25-100: $0.35
100-500: $0.28
LM385BZ-1.2RA
LM385BZ-1.2RA

ON Semiconductor

Voltage & Current References 1.2V 10uA-20mA

Data Sheet

Negotiable
