Product Summary

The LM392M is a precision voltage comparator. It is specifically designed to operate from a single power supply over a wide range of voltages. The LM392M has input stages which will commonmode input down to ground when operating from a single power supply. Operation from split power supplies is also possible and the low power supply current is independent of the magnitude of the supply voltage. Application areas include transducer amplifier with pulse shaper, DC gain block with level detector, VCO, as well as all conventional operational amplifier or voltage comparator circuits. The LM392M can be operated directly from the standard 5 VDC power supply voltage used in digital systems, and the output of the comparator will interface directly with either TTL or CMOS logic. In addition, the low power drain makes the LM392M extremely useful in the design of portable equipment.

Parametrics

LM392M absolute maximum ratings: (1)Supply Voltage, V+: 32V; (2)Differential Input Voltage: 32V; (3)Input Voltage: -0.3V to +32V; (4)Power Dissipation Small Outline Package: 530 mW; (5)Output Short-Circuit to Ground: Continuous; (6)Input Current (VIN < -0.3 VDC): 50 mA; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 10 seconds): 260℃; (10)ESD rating to be determined Dual-in-Line Package Soldering (10 seconds): 260℃; (11)Small Outline Package Vapor Phase (60 seconds): 215℃; (12)Small Outline Package Infrared (15 seconds): 220℃.

Features

LM392M features: (1)Wide power supply voltage range: Single supply: 3V to 32V, Dual supply: ±1.5V to ±16V; (2)Low supply current drain—essentially independent of supply voltage: 600 μA; (3)Low input biasing current: 50 nA; (4)Low input offset voltage: 2 mV; (5)Low input offset current: 5 nA; (6)Input common-mode voltage range includes ground; (7)Differential input voltage range equal to the power supply voltage.

Diagrams

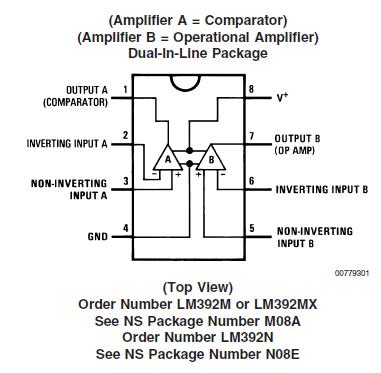

LM392M package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM392M
LM392M

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-950: $0.40
950-1045: $0.29
1045-2565: $0.27
2565-5035: $0.26
LM392M/NOPB
LM392M/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps LOW PWR OP AMP/VLTG COMPARATOR

Data Sheet

0-1: $0.67
1-25: $0.54
25-100: $0.47
100-250: $0.41
LM392MX/NOPB
LM392MX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps LOW PWR OP AMP/VLTG COMPARATOR

Data Sheet

0-1: $0.82
1-25: $0.65
25-100: $0.57
100-250: $0.50
LM392MX
LM392MX

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-2500: $0.27
2500-5000: $0.26
5000-10000: $0.24
