Product Summary
The LM4041C12IDCKR is a shunt voltage reference which is versatile, easy-to-use references with a vast array of applications. It requires no external resistors or capacitors for operation and are stable with all capacitive loads. Additionally, the LM4041C12IDCKR offers low dynamic impedance, low noise, and a low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. It uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer 5% (max) for the C grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. The LM4041C12IDCKR is available in a 1.225 V version (which requires an external resistor divider to set the output to a value of 1.225 V). Packaged in space-saving SC-70 requiring a minimum current of 45 mA (typ), the LM4041C12IDCKR also is ideal for portable applications. The LM4041C12IDCKR is characterized for operation over an ambient temperature range of –40℃ to 85℃.
Parametrics
LM4041C12IDCKR absolute maximum ratings: (1)VZ Continuous cathode voltage: 15 V; (2)IZ Continuous cathode current: –10 to 25 mA; (3)θJA Package thermal impedance: 252 ℃/W; (4)TJ Operating virtual junction temperature: 150℃; (5)Tstg Storage temperature range: –65 to 150℃; (6)IZ Cathode current: 12 mA.
Features
LM4041C12IDCKR features: (1)1.225-V Output; (2)Tight Output Tolerances and Low Temperature Coefficient: Max 0.5%, 100 ppm/℃; (3)Low Output Noise: 20 μVRMS (Typ); (4)Wide Operating Current Range: 45 μA (Typ) to 12 mA; (5)Stable With All Capacitive Loads; No Output Capacitor Required; (6)Industrial Temperature: –40℃ to 85℃; (7)Extended Temperature: –40℃ to 125℃.

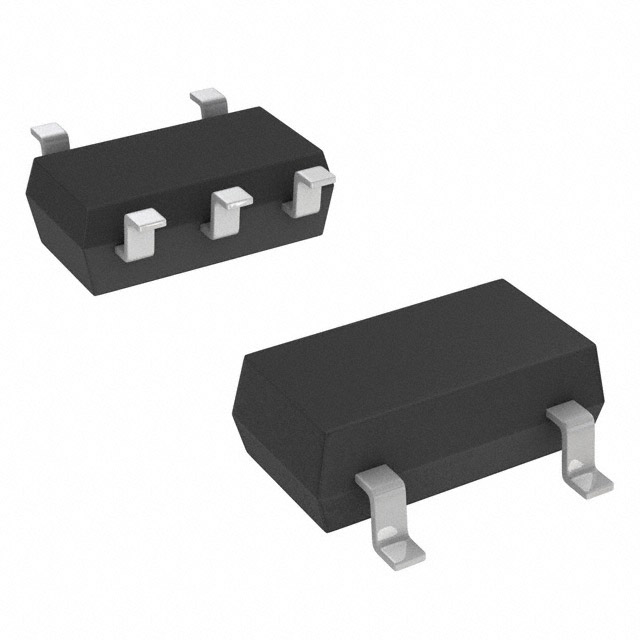

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4041C12IDCKR |
Texas Instruments |
Voltage & Current References 1.2-V Precision Mcrpwr Shunt .5% acc |
Data Sheet |
|
|
||||||||||||
|
LM4041C12IDCKRE4 |
Texas Instruments |
Voltage & Current References 1.2-V Precision Mcrpwr Shunt .5% acc |
Data Sheet |
|
|
||||||||||||
|
LM4041C12IDCKRG4 |
Texas Instruments |
Voltage & Current References 1.2V Prec Micropwr Shunt Vltg Ref |
Data Sheet |
|
|
||||||||||||
