Product Summary
The LM4050BIM3X-4.1 is a Precision Micropower Shunt Voltage Reference. Ideal for space critical applications, it is available in the sub-miniature (3 mm x 1.3 mm) SSOT-23 surface-mount package. Its design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4050BIM3X-4.1 easy to use. Further reducing design effort is the availability of 4.096V reverse breakdown voltage. The minimum operating current increases from 60 μA for the LM4050BIM3X-4.1. It has a maximum operating current of 15 mA. It utilizes fuse and zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25℃. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. All grades and voltage options of the LM4050BIM3X-4.1 operate between -40℃ and +85℃. Selected parts can operate in the extended temperature range, from -40℃ and +125℃.
Parametrics
LM4050BIM3X-4.1 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation (TA = 25℃) M3 Package: 280 mW; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature Vapor phase (60 seconds): +215℃; (6)Infrared (15 seconds): +220℃; (7)ESD Susceptibility Human Body Model: 2 kV; (8)Machine Model: 200V; (9)Industrial Temperature Range: -40℃ ≤ TA ≤ +85℃; (10)Extended temperature Range: -40℃ ≤ TA ≤ +125℃; (11)Reverse Current: 68 μA to 15 mA.
Features
LM4050BIM3X-4.1 features: (1)Small package: SSOT-23; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)reverse breakdown voltage of 4.096V; (5)±0.2%, 50 ppm/℃ max.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

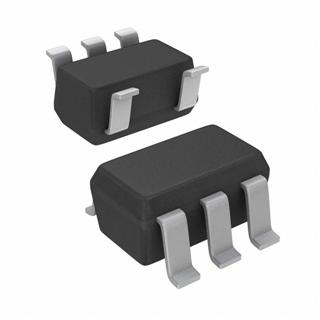

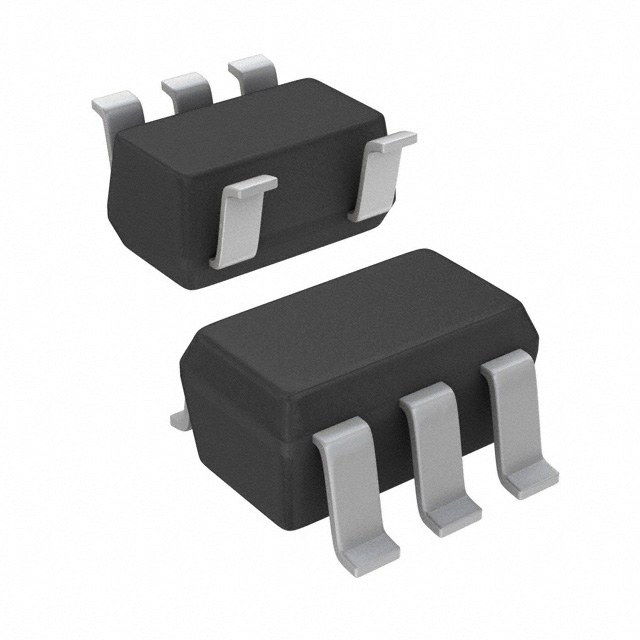

 LM4050BIM3X-4.1 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
|
LM4050BIM3X-4.1/NOPB |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
