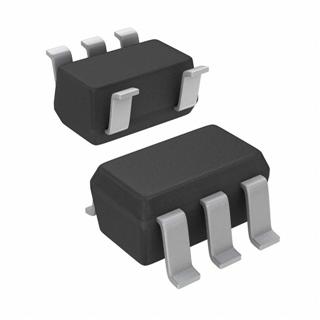

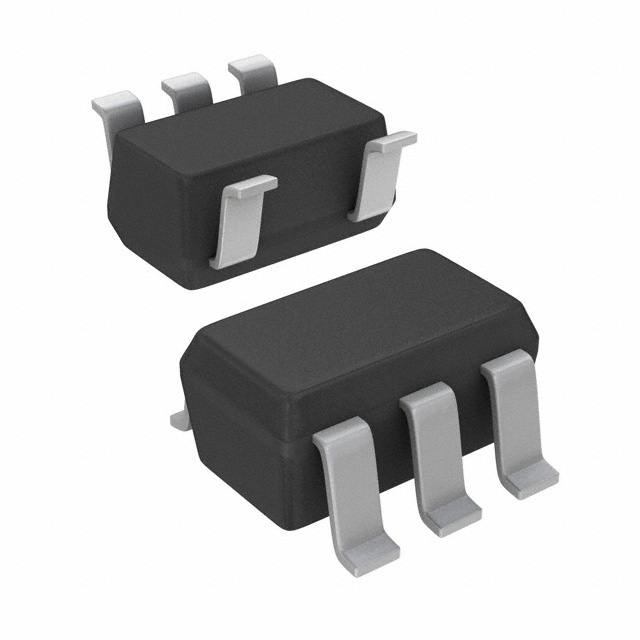

LM4051AEM3-1.2

LM4051AEM3-1.2, 1.225V, SOT23, Precision Micropower Shunt Voltage Reference, 20 mA, 280 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.33~0.35

PartNumber:: LM4051AEM3-1.2

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM4051AEM3-1.2
US $0.33 - 0.35
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM4051AEM3-1.2 is a Precision Micropower Shunt Voltage Reference. Ideal for space critical applications, it is available in the sub-miniature (3 mm x 1.3 mm) SOT-23 surface-mount package. Its advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4051AEM3-1.2 easy to use. Further reducing design effort is the availability of a 1.225V reverse breakdown voltage. The minimum operating current is 60 μA for the LM4051AEM3-1.2. It has a maximum operating current of 12 mA. It is the best grade device (A) which has an initial accuracy of 0.1%, while the B-grade have 0.2% and the C-grade 0.5%, all with a tempco of 50 ppm/℃ guaranteed from -40℃ to 125℃. The LM4051AEM3-1.2 utilizes fuse and zener-zap trim of reference voltage during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25℃.

Parametrics

LM4051AEM3-1.2 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation (TA = 25℃): 280 mW; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature Vapor phase (60 seconds): +215℃; (6)Infrared (15 seconds): +220℃; (7)ESD Susceptibility Human Body Model: 2 kV; (8)Machine Model: 200V.

Features

LM4051AEM3-1.2 features: (1)Small packages: SOT-23; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Reverse breakdown voltage 1.225V; (5)Output voltage tolerance (A grade, 25℃) ±0.1%(max); (6)Low output noise (10 Hz to 10kHz) 20μVrms; (7)Wide operating current range 60μA to 12mA; (8)Industrial temperature range -40℃ to +85℃; (9)Extended temperature range -40℃ to +125℃; (10)Low temperature coefficient 50 ppm/℃ (max).
