Product Summary
The LM6142BIM is a 17 MHz Rail-to-Rail Input-Output Operational Amplifier. Using patent pending new circuit topologies, the LM6142BIM provides new levels of performance in applications where low voltage supplies or power limitations previously made compromise necessary. Operating on supplies of 1.8V to over 24V, the LM6142BIM is an excellent choice for battery operated systems, portable instrumentation and others. The greater than rail-to-rail input voltage range eliminates concern over exceeding the common-mode voltage range. The rail-to-rail output swing provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. High gain-bandwidth with 650μA/Amplifier supply current opens new battery powered applications where previous higher power consumption reduced battery life to unacceptable levels. The ability to drive large capacitive loads without oscillating functionally removes this common problem. The LM6142BIM is applicated for Battery operated instrumentation, Depth sounders/fish finders, Barcode scanners, Wireless communications and Rail-to-rail in-out instrumentation amps.
Parametrics
LM6142BIM absolute maximum ratings: (1)ESD Tolerance: 2500V; (2)Differential Input Voltage: 15V; (3)Voltage at Input/Output Pin: (V+) + 0.3V, (V-) - 0.3V; (4)Supply Voltage: (V+ - V-) 35V; (5)Current at Input Pin: ±10mA; (6)Current at Output Pin: ±25mA; (7)Current at Power Supply Pin: 50mA; (8)Lead Temperature (soldering, 10 sec): 260℃; (9)Storage Temp. Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.
Features
LM6142BIM features: (1)Rail-to-rail input CMVR -0.25V to 5.25V; (2)Rail-to-rail output swing 0.005V to 4.995V; (3)Wide gain-bandwidth: 17MHz at 50kHz (typ); (4)Slew rate: Small signal 5V/μs, Large signal 30V/μs; (5)Low supply current 650μA/Amplifier; (6)Wide supply range 1.8V to 24V; (7)CMRR 107dB; (8)Gain 108dB with RL = 10k; (9)PSRR 87dB.

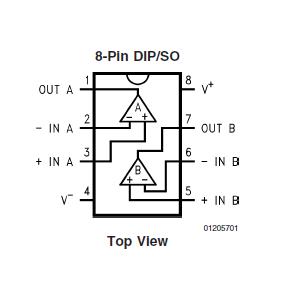

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM6142BIM |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM6142BIM/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps DUAL HI SPD/LOW PWR 17 MHZ RRIO OP AMP |
Data Sheet |
|
|
||||||||||||
|
LM6142BIMX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM6142BIMX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
