LMV1032URX-25

LMV1032URX-25, audio amplifier, MICRO, 250V, -89dBV, 60μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: LMV1032URX-25

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-04

From Other Seller

Part Number:LMV1032URX-25
US $0.10 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

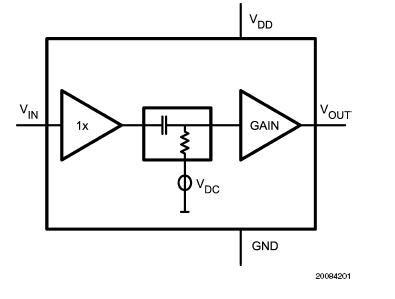

The LMV1032URX-25 is an audio amplifier for 3-Wire Analog Electret Microphones. It is designed to replace the JFET preamp currently being used. The LMV1032URX-25 is ideal for extended battery life applications, such as a Bluetooth communication link. The addition of a third pin to an electret microphone that incorporates an LMV1032 allows for a dramatic reduction in supply current as compared to the JFET equipped electret microphone. Microphone supply current is thus reduced to 60μA, assuring longer battery life. It is guaranteed for supply voltages from 1.7V to 5V, and has fixed voltage gains of 6 dB, 15dB and 25dB. The applications of the LMV1032URX-25 include Mobile communications - Bluetooth, Automotive accessories, Cellular phones, PDAs, Accessory microphone products.

Parametrics

LMV1032URX-25 absolute maximum ratings: (1) ESD Tolerance: Human Body Model 2500V, Machine Model 250V; (2) Supply Voltage: VDD - GND 5.5V.

Features

LMV1032URX-25 features: (1)Output voltage noise (A-weighted): -89dBV; (2)Low supply current: 60μA; (3)Supply voltage: 1.7V to 5V; (4)PSRR: 70dB; (5)Signal to noise ratio: 61dB; (6)Input capacitance: 2pF; (7)Input impedance: ＞100MΩ; (8)Output impedance:＜200Ω; (9)Max input signal 170mVPP; (10)Temperature range: -40℃ to 85℃; (11) Large Dome 4-Bump micro SMD package with improved adhesion technology.
