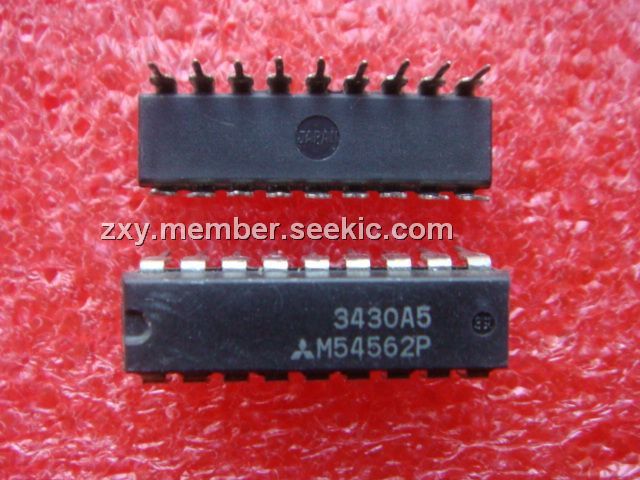

M54562P

Darlington transistor array, DIP-18, -0.5 to +50 V, With output clamping diodes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: M54562P

Brand:: Mitsubishi Electric Semiconductor - MES | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:M54562P
US $0.10 - 0.50
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The M54562P is an eight-circuit output-sourcing Darlington transistor array. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low inputcurrent supply. The applications of the M54562P include Drives of relays, printers, LEDs, fluorescent display tubes and lamps, and interfaces between MOS-bipolar logic systems and relays, solenoids, or small motors.

Parametrics

M54562P absolute maximum ratings: (1)Collector-emitter voltage: -0.5 to +50 V; (2)Supply voltage: 50 V; (3)Input voltage: -0.5 to +30 V; (4)Output current: -500 mA; (5)Clamping diode forward current: -500 mA; (6)Clamping diode reverse voltage: 50 V; (7)Power dissipation: 1.79(P)/1.10(FP) W; (8)Operating temperature: -20 to +75 ℃; (9)Storage temperature: -55 to +125 ℃.
