Product Summary

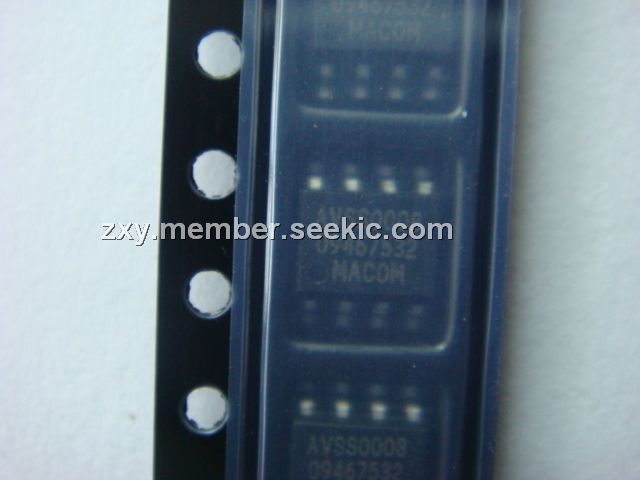

M/A-COM’s MAAVSS0008TR is a GaAs MMIC voltage variable absorptive attenuator in a lead-free SOIC-8 surface mount plastic package. The MAAVSS0008TR is ideally suited for use where linear attenuation fine tuning and very low power consumption are required.

Parametrics

MAAVSS0008TR absolute maximum ratings:(1)Input Power +21 dBm ; (2)Supply Voltage VCC -1 V < VCC < +8 V ; (3)Control Voltage VC -1 V < VC < VCC + 0.5 V ; (4)Operating Temperature -40℃ to +85℃ ; (5)Storage Temperature -65℃ to +150℃

Features

MAAVSS0008TR features: (1)Single Positive Voltage Control: 0 to +5 Volts ; (2)30 dB Voltage Variable Attenuation ; (3)± 2 dB Linearity from BSL ; (4)Low DC Power Consumption ; (5)Temperature Range: -40℃ to +85℃ ; (6)Fast Switching Speed ; (7)Lead-Free SOIC-8 Package ; (8)100% Matte Tin Plating over Copper ; (9)Halogen-Free “Green” Mold Compound ; (10)260℃ Reflow Compatible ; (11)RoHS* Compliant Version of AT-110-2.

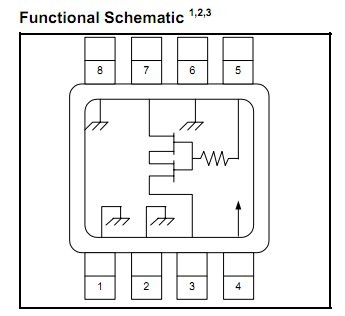

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAAVSS0008TR-3000
MAAVSS0008TR-3000
M/A-COM Technology Solutions
Active Attenuator .5-2.0GHz 30dB VVA il 3.6dB Max.
Data Sheet
0-2150: $1.81
2150-3000: $1.78
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAAV-007941-TR3000
MAAV-007941-TR3000
M/A-COM Technology Solutions
Active Attenuator DC-2GHz 12dB VVA -40C 85C
Data Sheet
0-1970: $1.04
1970-3000: $1.02
MAAV-008022-TR3000
MAAV-008022-TR3000
M/A-COM Technology Solutions
Active Attenuator .5-2.0GHz 4dB VVA IL 3.0dB TYP.
Data Sheet
0-1960: $0.81
1960-3000: $0.80
3000-9000: $0.79
MAAVSS0001TR-3000
MAAVSS0001TR-3000
M/A-COM Technology Solutions
Attenuators (ICs) 1800-2.5GHz IL 2.4dB Atten. Range 42dB
Data Sheet
0-1: $1.49
1-10: $1.25
10-100: $1.12
100-500: $1.00
MAAVSS0005TR-3000
MAAVSS0005TR-3000
M/A-COM Technology Solutions
Active Attenuator DC-2GHz 12dB VVA IL 3.8dB Max.
Data Sheet
0-2150: $0.50
2150-3000: $0.50
3000-9000: $0.49
MAAVSS0008TR-3000
MAAVSS0008TR-3000
M/A-COM Technology Solutions
Active Attenuator .5-2.0GHz 30dB VVA il 3.6dB Max.
Data Sheet
0-2150: $1.81
2150-3000: $1.78
MAAVSS0007TR-3000
MAAVSS0007TR-3000
M/A-COM Technology Solutions
Active Attenuator 500-3000MHz 40dB VVA IL 3.5dB Max.
Data Sheet
0-2150: $1.31
2150-3000: $1.29
