Product Summary

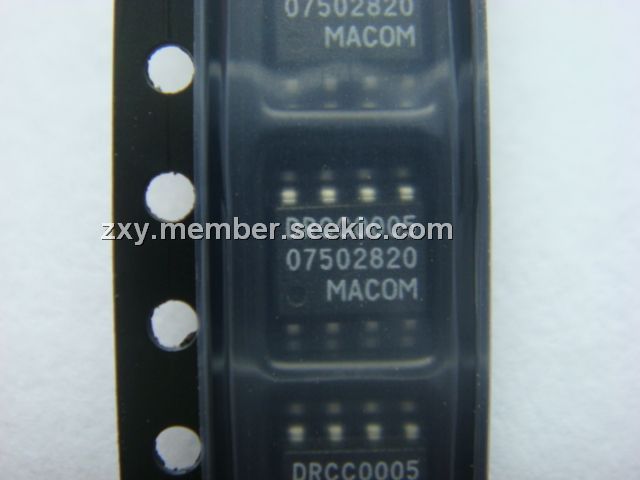

The MADRCC0005TR is a Single channel driver used to translate TTL control inputs into complementary gate voltages for GaAs FET microwave switches and attenuators. High speed analog CMOS technology of MADRCC0005TR is utilized to achieve low power dissipation at moderate to high speeds, encompassing most microwave switching applications.
Parametrics
MADRCC0005TR absolute maximum ratings: (1)VCC: -5V to + 6.0 V; (2)VEE: -6.0 V to -5 V; (3)VCC - VEE: 12 V; (4)V IN: VCC +5 V; (5)V OUT: VEE -5 V; (6)Storage Temperature: -65℃ to +150℃.
Features
MADRCC0005TR features: (1)High Speed CMOS Technology; (2)Complementary Outputs; (3)Positive Voltage Control; (4)Low Power Dissipation; (5)Plastic SOIC Package for SMT Applications; (6)Tape and Reel Packaging Available; (7)Lead-Free SOIC-8 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free "Green" Mold Compound; (10)260℃ Reflow Compatible; (11)RoHS* Compliant Version of DR65-0109.

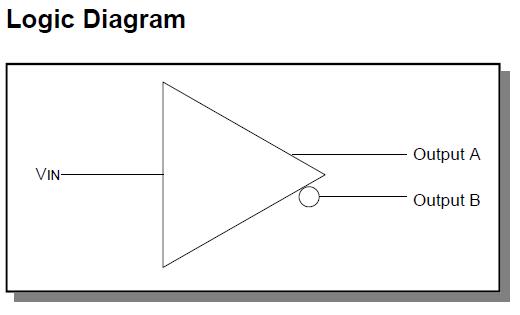

Diagrams
 |
