Product Summary
The MAX3225CAP is a RS-232 Transceiver. The applications of the MAX3225CAP include Notebook, Subnotebook, and Palmtop Computers, Cellular Phones, Battery-Powered Equipment, Hand-Held Equipment, Peripherals and Printers.
Parametrics
MAX3225CAP absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)V+ to GND (Note 1): -0.3V to +7V; (3)V- to GND (Note 1): +0.3V to -7V; (4)Input Voltages T_IN, FORCEON, FORCEOFF to GND: -0.3V to +6V; (5)R_IN to GND: ±25V; (6)Output Voltages T_OUT to GND: ±13.2V; (7)R_OUT, INVALID, READY to GND: -0.3V to (VCC + 0.3V); (8)Short-Circuit Duration T_OUT to GND: Continuous; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX3225CAP features: (1)1μA Supply Current; (2)Auto Shutdown Plus—EDN Innovation of the Year; (3)Meets EIA/TIA-232 Specifications Down to 3.0V; (4)Guaranteed Mouse Driveability; (5)Ready-to-Transmit Logic-Level Output.

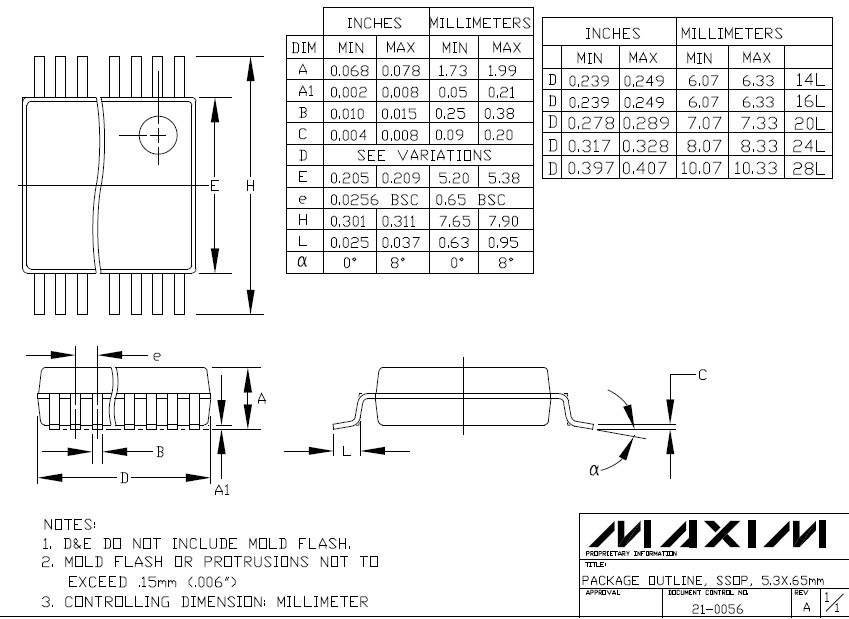

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3225CAP-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX3225CAP+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3225CAP+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3225CAP |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
