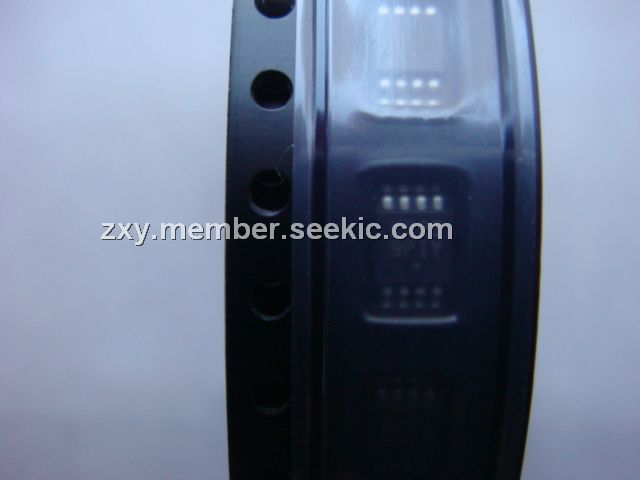

Product Summary
The MC100LVELT23DT KR23 is a dual differential LVPECL/LVDS to LVTTL translator. Because LVPECL (Positive ECL) or LVDS levels are used only +3.3 V and ground are required. The small outline 8-lead package and the dual gate design of the LVELT23 makes it ideal for applications which require the translation of a clock and a data signal.
Parametrics
MC100LVELT23DT KR23 absolute maximum ratings: (1)PECL Power Supply: 3.8V; (2)Input voltage: 3.8V; (3)Output current: 50 to 100mA; (4)Operating Temperature Range: -40 to 85℃; (5)Storage Temperature: -65 to 150℃; (6)Wave Solder: 265℃.
Features
MC100LVELT23DT KR23 features: (1)2.0 ns Typical Propagation Delay; (2)Maximum Frequency > 180 MHz; (3)Differential LVPECL Inputs; (4)PECL Mode Operating Range:VCC = 3.0 V to 3.8 V with GND = 0 V; (5)24 mA LVTTL Outputs; (6)Flow Through Pinouts; (7)Internal Pulldown and Pullup Resistors; (8)Pb−Free Packages are Available.

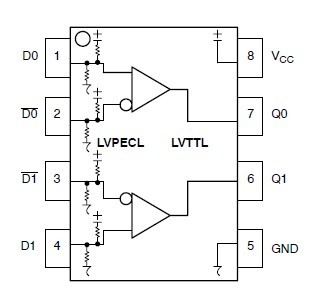

Diagrams
 |
