Product Summary

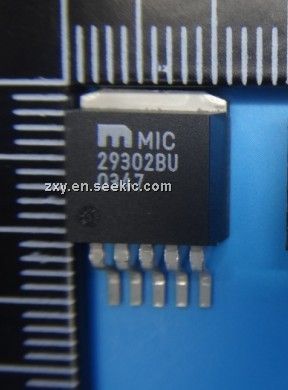

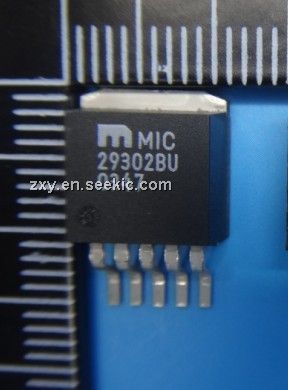

The MIC29302BU is a high current, high accuracy, low-dropout voltage regulator. It featured 300mV to 370mV (full load) dropout voltages and very low ground current. Designed for high current loads, the MIC29302BU also finds applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Applications of the MIC29302BU include Battery Powered Equipment, High-Efficiency Green Computer Systems, Automotive Electronics, High-Efficiency Linear Power Supplies and High-Efficiency Post-Regulator For Switching Supply.
Parametrics
MIC29302BU absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Lead Temperature (Soldering, 5 seconds): 260℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Input Supply Voltage (Note 1): -20V to +60V; (5)Operating Junction Temperature: -40℃ to +125℃; (6)Maximum Operating Input Voltage: 26V.
Features
MIC29302BU features: (1)High Current Capability; (2)Low-Dropout Voltage; (3)Low Ground Current; (4)Accurate 1% Guaranteed Tolerance; (5)Extremely Fast Transient Response; (6)Zero-Current Shutdown Mode (5-Pin versions); (7)Error Flag Signals Output Out-of-Regulation (5-Pin versions); (8)Also Characterized For Smaller Loads With Industry-Leading Performance Specifications; (9)Fixed Voltage and Adjustable Versions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC29302BU |
|
IC REG LDO ADJ 3A TO263-5 |
Data Sheet |
Negotiable |
|
||||
|
MIC29302BU TR |
|
IC REG LDO ADJ 3A TO263-5 |
Data Sheet |
Negotiable |
|
||||
