Product Summary

The MSP430F2003TPW is a mixed signal microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F2003TPW features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 μs.

Parametrics

MSP430F2003TPW absolute maximum ratings: (1)Voltage applied at VCC to VSS:-0.3V to 4.1V; (2)Voltage applied to any pin:-0.3V to VCC+0.3V; (3)Diode current at any device terminal:±2mA; (4)Storage temperature: Programmed device:-40℃ to 150℃, Unprogrammed device:-55℃ to 150℃.

Features

MSP430F2003TPW features: (1)Low Supply Voltage Range 1.8V to 3.6V; (2)Ultra-Low Power Consumption: Active Mode: 220 μA at 1 MHz, 2.2V, Standby Mode: 0.5 μA, Off Mode (RAM Retention): 0.1 μA; (3)Five Power-Saving Modes; (4)Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs; (5)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (6)Basic Clock Module Configurations: Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%, Internal Very Low-Power Low-Frequency Oscillator, 32-kHz Crystal, External Digital Clock Source; (7)16-Bit Timer_A With Two Capture/Compare Registers; (8)16-Bit Sigma-Delta A/D Converter With Differential PGA Inputs and Internal Reference; (9)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse; (10)On-Chip Emulation Logic With Spy-Bi-Wire Interface.

Diagrams

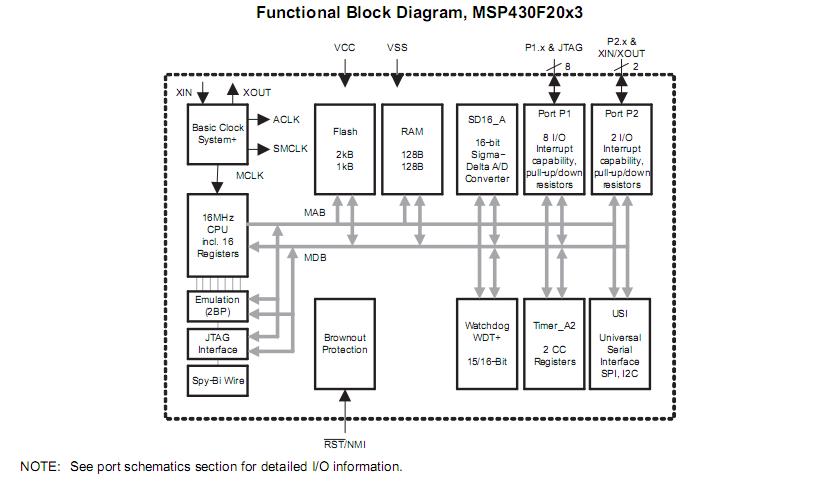

MSP430F2003TPW block diagram
