Product Summary

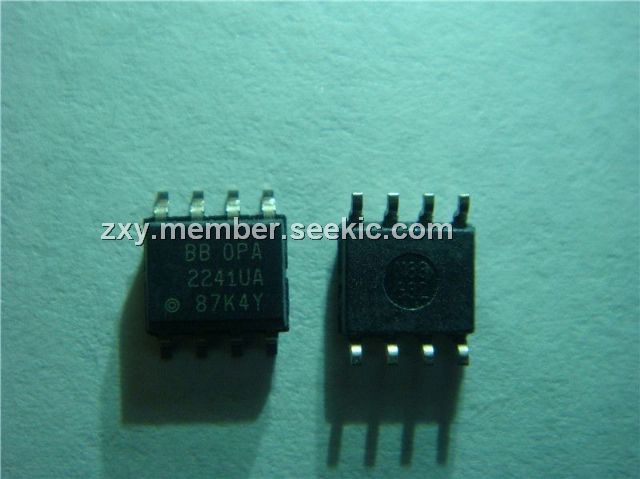

The OPA2241UA is an operational amplifier. The OPA2241UA is specifically designed for battery powered, portable applications. In addition to very low power consumption (25mA), It features low offset voltage, rail-to-rail output swing, high common-mode rejection, and high open-loop gain. The applications of the OPA2241UA include battery operated instruments, portable devices, medical instruments, test equipment.
Parametrics
OPA2241UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) –0.5V to (V+) +0.5V; (3)Output Short Circuit to Ground: Continuous; (4)Operating Temperature: –55 to +125℃; (5)Storage Temperature:–55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA2241UA features: (1)micropower: iq = 25μA; (2)single-supply operation; (3)RAIL-TO-RAIL output (within 50mV); (4)wide supply range single Supply: +2.7V to +36V; (5)dual supply: ±1.35V to ±18V; (6)low offset voltage: ±250mV max; (7)high common-mode rejection: 124dB; (8)high open-loop gain: 128dB; (9)SINGLE, DUAL, AND QUAD.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA2241UA |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA2241UA/2K5 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA2241UA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA2241UAG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
||||||||||||
