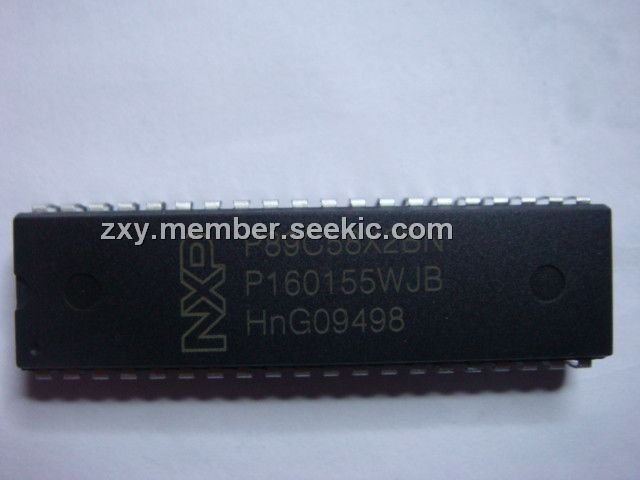

P89C58X2BN

Product Summary

The P89C58X2BN is a high-performance static 80C51 Philips microcontroller. The P89C58X2BN is manufactured in an advanced CMOS process and contains a non-volatile Flash program memory. The P89C58X2BN supports both 12-clock and 6-clock operation. The P89C58X2BN contains 256 byte RAM, 32 I/O lines, three 16-bit counter/timers, a six-source, four-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and on-chip oscillator and clock circuits. In addition, the device of P89C58X2BN is static a design which offers a wide range of operating frequencies down to zero.

Parametrics

P89C58X2BN absolute maximum ratings: (1)Operating temperature under bias: 0 to +70°C or –40 to +85 °C; (2)Storage temperature range: –65°C to +150 °C; (3)Voltage on EA/VPP pin to VSS: 0 to +13.0 V; (4) Voltage on any other pin to VSS: –0.5 V to +6.5 V; (5)Maximum IOL per I/O pin: 15 mA; (6)Power dissipation (based on package heat transfer limitations, not device power consumption): 1.5 W.

Features

P89C58X2BN features: (1)80C51 Central Processing Unit: 32 Kbytes Flash (P89C58X2), 256 byte RAM, Boolean processor, Fully static operation; (2)12-clock operation with selectable 6-clock operation (via software or via parallel programmer); (3)Memory addressing capability: Up to 64 Kbytes ROM and 64 Kbytes RAM; (4)Power control modes: Clock can be stopped and resumed, Idle mode, Power-down mode; (5)Two speed ranges: 0 to 20 MHz with 6-clock operation, 0 to 33 MHz with 12-clock operation; (6)DIP package; (7)Extended temperature ranges; (8)Dual Data Pointers; (10)Three security bits; (11)Four interrupt priority levels; (12)Six interrupt sources; (13)Four 8-bit I/O ports; (14)Full-duplex enhanced UART: Framing error detection, Automatic address recognition; (15)Three 16-bit timers/counters T0, T1 (standard 80C51) and additional T2 (capture and compare); (16)Programmable clock-out pin; (17)Asynchronous port reset; (18)Low EMI (inhibit ALE, slew rate controlled outputs, and 6-clock mode); (19)Wake-up from Power Down by.

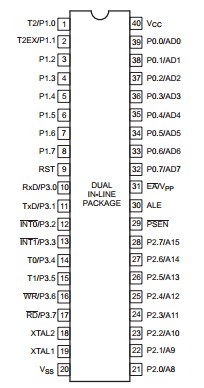

Diagrams
