PI74STX1G02TEX

high-speed, high output drive, power down, high-impedance inputs/outputs, SOT23-5, 2-input NOR gate

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: PI74STX1G02TEX

Brand:: Pericom Semiconductor Corporation - pericom | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:PI74STX1G02TEX
US $0.10 - 0.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

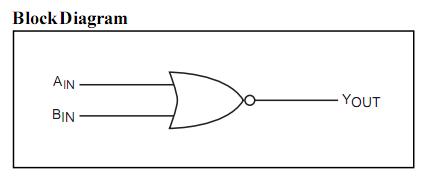

The PI74STX1G02TEX is a 2-input NOR gate that operates over the 1.65V to 5.5V VCC operating range. It is produced using the company’s advanced submicron technology.

Parametrics

PI74STX1G02TEX absolute maximum ratings: (1)supply voltage:-0.5V to +6V; (2)DC input voltage:-0.5V to +6V; (3)DC output voltage:-0.5V to +6V; (4)DC input diode current:-50mA to 20mA; (5)DC output diode current:-50mA to 20mA; (6)DC output current:±50mA; (7)DC VCC/GND current:±50mA; (8)storage temperature:-65℃ to +150℃; (9)junction lead temperature:200℃; (10)power dissipation: SOT23:200mW, SC70:150mW.

Features

PI74STX1G02TEX features: (1)high-speed:tPD=2.5ns typical into 50pF @ 5V VCC; (2)broad operating range: VCC=1.65V to 5.5V; (3)power down high-impedance inputs/outputs; (4)high output drive:±24mA at 3V VCC; (5)package:5-pin space saving SOT23 and SC70.
