Product Summary

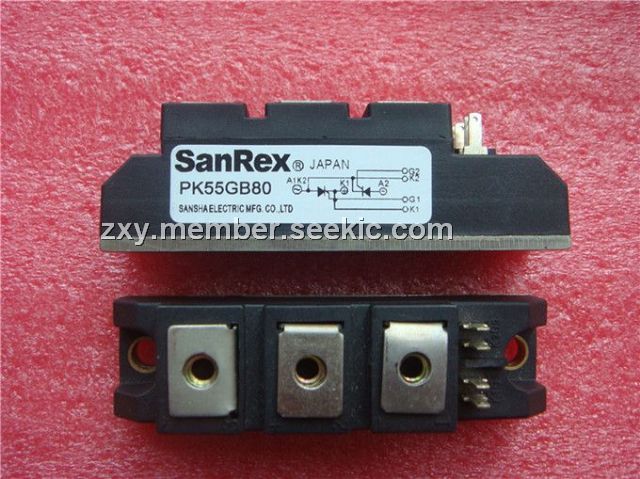

The PK55GB80 is a power module. It is designed for various rectifier circuits and power controls.
Parametrics
PK55GB80 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 800 V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 960 V; (3)VDRM, Repetitive Peak Off-State Voltage: 800 V; (4)Average On-State Current: 55A; (5)R.M.S. On-State Current: 86A; (6)Surge On-State Current: 1000/1100 A; (7)PGM Peak Gate Power Dissipation: 10W; (8)Average Gate Power Dissipation: 3W; (9)IFGM Peak Gate Current: 3A; (10)VFGM Peak Gate Voltage (Forward): 10V; (11)VRGM Peak Gate Voltage (Reverse): 5V; (12)Tj, Operating Junction Temperature: -40 to 125℃; (13)Tstg, Storage Temperature: -40 to 125℃.
Features
PK55GB80 features: (1)IT(AV) 55A, IT(RMS) 86A, ITSM 1100A; (2)di/dt 150 A/μs; (3)dv/dt 500V/μs.

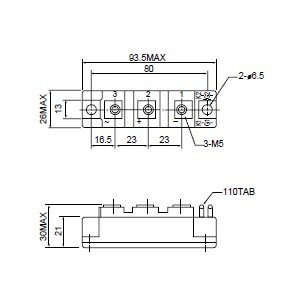

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PK55GB80 |
Other |
|
Data Sheet |
Negotiable |
|
||||
