Product Summary
The PM50RHA120-1 is an intellgent power module. The applications of the PM50RHA120-1 include general purpose inverter, servo drives and other motor controls.
Parametrics
PM50RHA120-1 absolute maximum ratings: (1)supply voltage: 900 V; (2)supply voltage (surge): 1000 V; (3)collector-emitter voltage: 1200 V; (4)collector-current: 50 A at Tc=25℃; (5)collector-current (peak): 100 A at Tc=25℃; (6)collector dissipation: 416 W at Tc=25℃; (7)junction temperature: -20 to +150℃.
Features
PM50RHA120-1 features: (1)3φ 50 A, 1200 V current-sense IGBT type inverter; (2)monolithic gate drive & protection logic; (3)detection, protection & statusindication circuits for over-current, short-circuit, over-temperature & under-voltage; (4)acoustic noise-less 7.5kW class inverter application; (5)UL recognized.

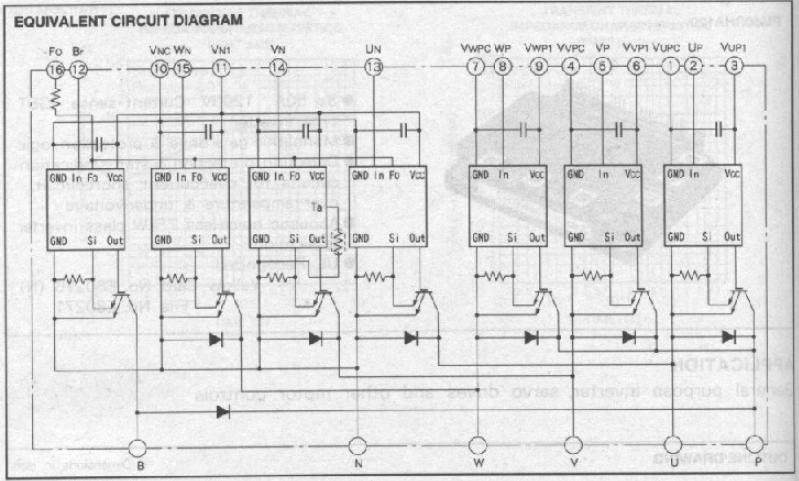

Diagrams
 |
