Product Summary

The PS11014 is an application specific intelligent power module. The applications of the PS11014 include Acoustic noise-less 0.75kW/AC200V class 3 phase inverter and other motor control applications.

Parametrics

PS11014 absolute maximum ratings: (1)Supply voltage: 450V; (2)Supply voltage (Surge): 500V; (3)Each output IGBT collector-emitter static voltage: 600V; (4)Each output IGBT collector-emitter switching surge voltage: 600V; (5)Each output IGBT collector current: ±15(±30)A; (6)Each output IGBT collector current: 4(8)A; (7)Brake diode anode current: 4(8)A.

Features

PS11014 features: (1)Converter bridge for 3 phase AC-to-DC power conversion.; (2)Circuit for dynamic braking of motor regenerative energy.; (3)3-phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technology.; (4)Inverter output current capability IO.

Diagrams

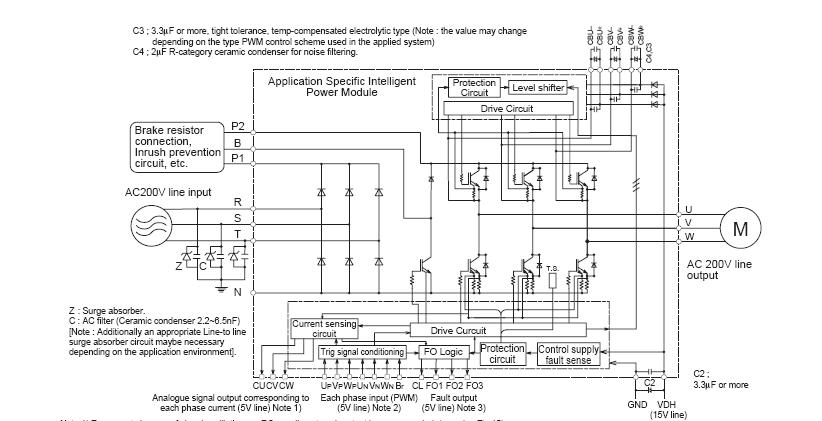

PS11014 block diagram

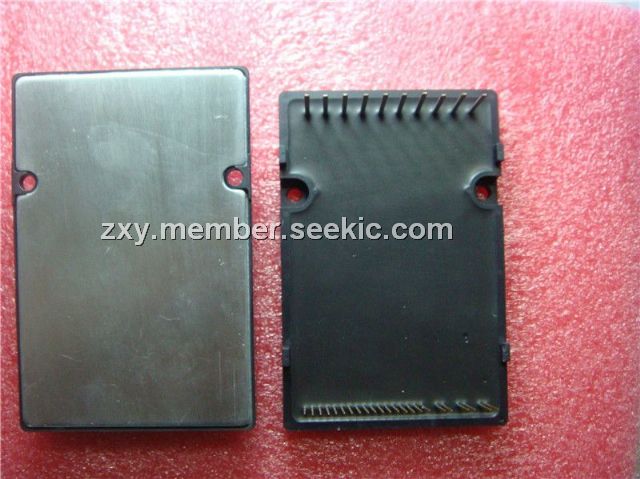

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PS11014
PS11014

MOD IPM 3PHASE IGBT 600V 15A
Data Sheet
Negotiable
