Product Summary

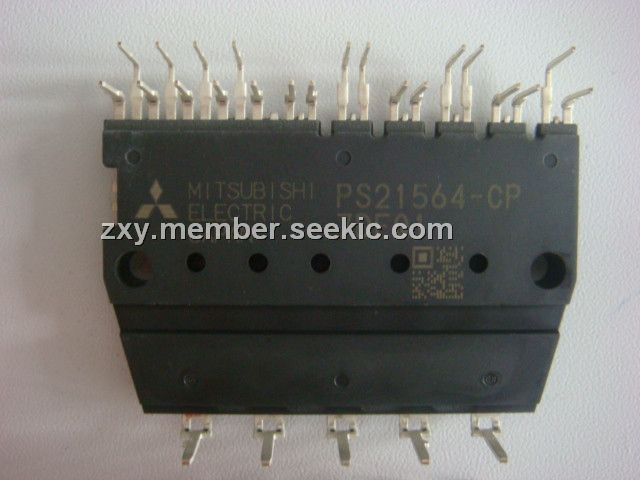

The PS21564-CP is an intelligent power module that integrate power devices, drivers, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motors. The applications of the PS21564-CP include Washing Machines, Refrigerators, Air Conditioners, Small Servo Motors, Small Motor Control.
Parametrics
PS21564-CP absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 125 ℃; (2)Module Case Operation Temperature: -20 to 100 ℃; (3)Storage Temperature: -40 to 125 ℃; (4)Mounting Torque, M3 Mounting Screws: 8.5 in-lb; (5)Module Weight (Typical): 20 Grams; (6)Self-protection Supply Voltage Limit (Short Circuit Protection Capability): 400 Volts; (7)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate: 2500 Volts.
Features
PS21564-CP features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU.

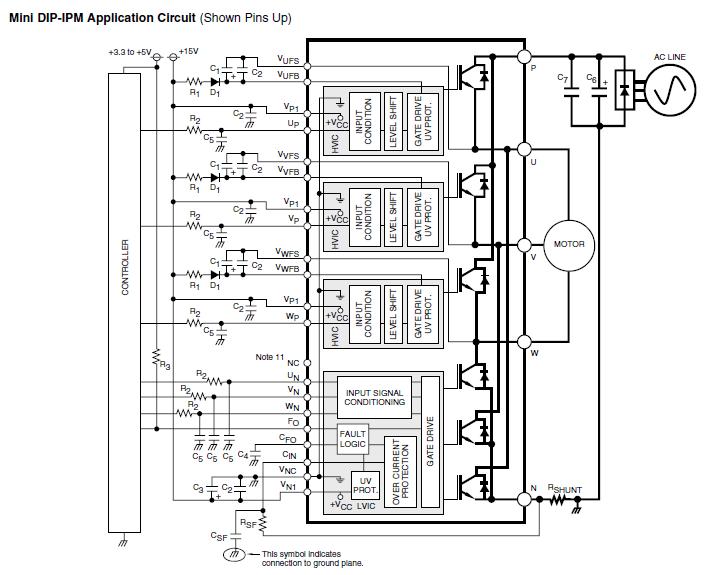

Diagrams
 |
