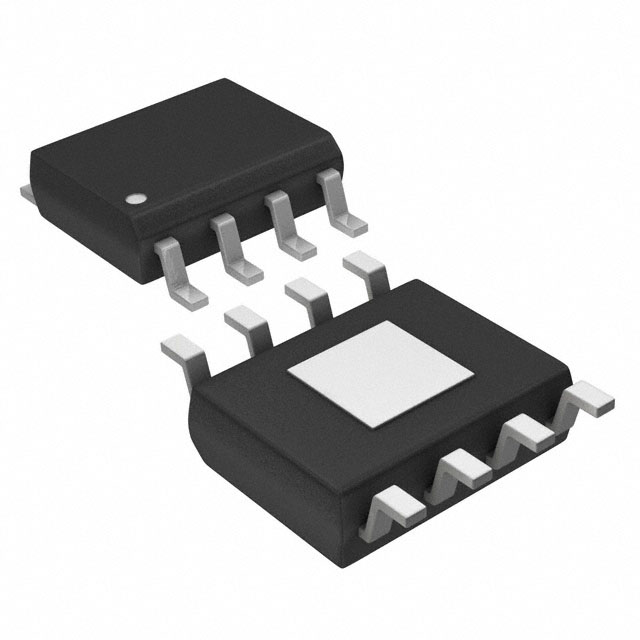

Brand:: Richtek Technology Corporation - richtek | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:RT8015GSP
US $0.70 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RT8015GSP is a high efficiency synchronous, step-down DC/DC converter. Its input voltage range is from 2.6V to 5.5V and provides an adjustable regulated output voltage from 0.8V to 5V while delivering up to 3A of output current. The RT8015GSP is operated in forced continuous PWM Mode which minimizes ripple voltage and reduces the noise and RF interference. The applications of the RT8015GSP include Portable Instruments, Battery-Powered Equipment, Notebook Computers, Distributed Power Systems, IP Phones, and Digital Cameras.

Parametrics

RT8015GSP absolute maximum ratings: (1)Supply Input Voltage, VDD, PVDD: -0.3V to 6V; (2)LX Pin Switch Voltage: -0.3V to (PVDD + 0.3V); (3)＜200ns: -5V to 7.5V; (4)Other I/O Pin Voltages: -0.3V to (VDD + 0.3V); (5)LX Pin Switch Current: 4A; (6)Power Dissipation, PD @ TA = 25℃ SOP-8 (Exposed Pad): 1.333W; (7)WDFN-10L 3x3: 1.429W; (8)Package Thermal Resistance (Note 2) SOP-8 (Exposed Pad), θJA: 75℃/W; (9)SOP-8 (Exposed Pad), θJC: 15℃/W; (10)WDFN-10L 3x3, θJA: 70℃/W; (11)WDFN-10L 3x3, θJC: 8.2℃/W; (12)Junction Temperature: 150℃; (13)Lead Temperature (Soldering, 10 sec.): 260℃; (14)Storage Temperature Range: -65℃ to 150℃; (15)ESD Susceptibility (Note 3) HBM (Human Body Mode): 2kV; (16)MM (Machine Mode):200V.

Features

RT8015GSP features: (1)High Efficiency : Up to 95%; (2)Low RDS(ON) Internal Switches : 110mΩ; (3)Programmable Frequency : 300kHz to 2MHz; (4)No Schottky Diode Required; (5)0.8V Reference Allows for Low Output Voltage; (6)Forced Continuous Mode Operation; (7)Low Dropout Operation : 100% Duty Cycle; (8)RoHS Compliant and 100% Lead (Pb)-Free.
