RT9711BGB

RT9711BGB, 80mΩ, 1.5A, High-Side Power Switch, SOP8, 6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.25

PartNumber:: RT9711BGB

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:RT9711BGB
US $0.20 - 0.25
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

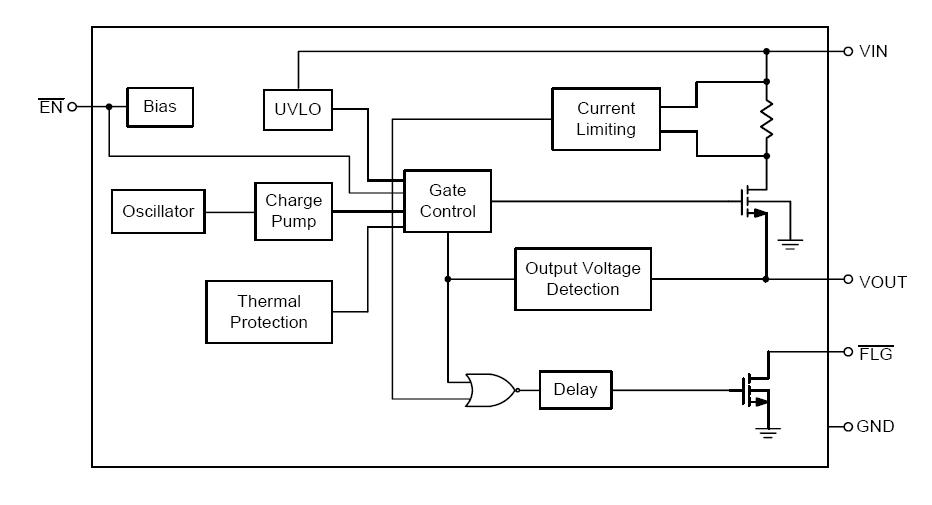

The RT9711BGB is a low voltage, single N-Channel MOSFET high-side power switch, optimized for self-powered and bus- powered Universal Serial Bus (USB) applications. The RT9711BGB equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch’s low RDS(ON), 80mΩ, meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller. The applications of the RT9711BGB include USB Bus/Self Powered Hubs, USB Peripherals, ACPI Power Distribution, PC Card Hot Swap, Notebook, Motherboard PCs, Battery-Powered Equipment, Hot-Plug Power Supplies, and Battery-Charger Circuits.

Parametrics

RT9711BGB absolute maximum ratings: (1)Supply Voltage: 6.5V; (2)Chip Enable Input Voltage: -0.3V to 6.5V; (3)Flag Voltage: 6.5V; (4)Power Dissipation, PD @ TA = 25℃; (5)SOT-23-5: 0.4W; (6)SOP-8: 0.625W; (7)Package Thermal Resistance (Note 5); (8)SOT-23-5, θJA: 250℃/W; (9)SOP-8, θJA: 160℃/W; (10)Junction Temperature: 125℃; (11)Lead Temperature (Soldering, 10 sec.): 260℃; (12) Storage Temperature Range: -65℃ to 150℃; (13) ESD Susceptibility (Note 2); (14) HBM (Human Body Mode): 2kV; (15)MM (Machine Mode): 200V.

Features

RT9711BGB features: (1)Compliant to USB Specifications; (2)Built-In N-Channel MOSFET; (3)Typical RDS(ON) : 80mΩ (SOT-23-5), 90mΩ (SOP-8); (4)Output Can Be Forced Higher Than Input (Off-State); (5)Low Supply Current : 25μA Typical at Switch On State; (6)1μA Typical at Switch Off State; (7)Guaranteed 1.5A Continuous Load Current; (8)Wide Input Voltage Ranges : 2.5V to 5.5V; (9)Open-Drain Fault Flag Output; (10)Hot Plug-In Application (Soft-Start); (11)1.7V Typical Under-Voltage Lockout (UVLO); (12)Current Limiting Protection; (13)Thermal Shutdown Protection; (14)Reverse Current Flow Blocking (no body diode); (15)UL Approved E219878; (16)RoHS Compliant and 100% Lead (Pb)-Free.
