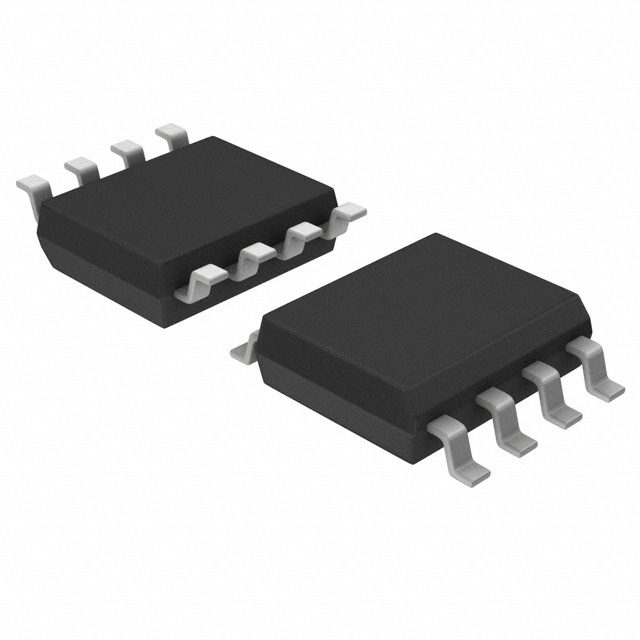

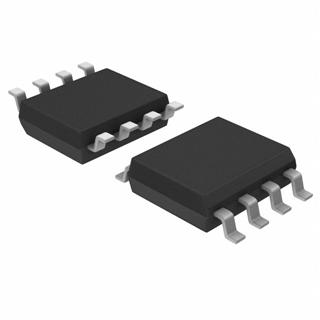

RT9712BGS

RT9712BGS, power-distribution switch, SOP-8, 6V, 469mW, 2KV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.20

PartNumber:: RT9712BGS

Brand:: Richtek Technology Corporation - richtek | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:RT9712BGS
US $0.16 - 0.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

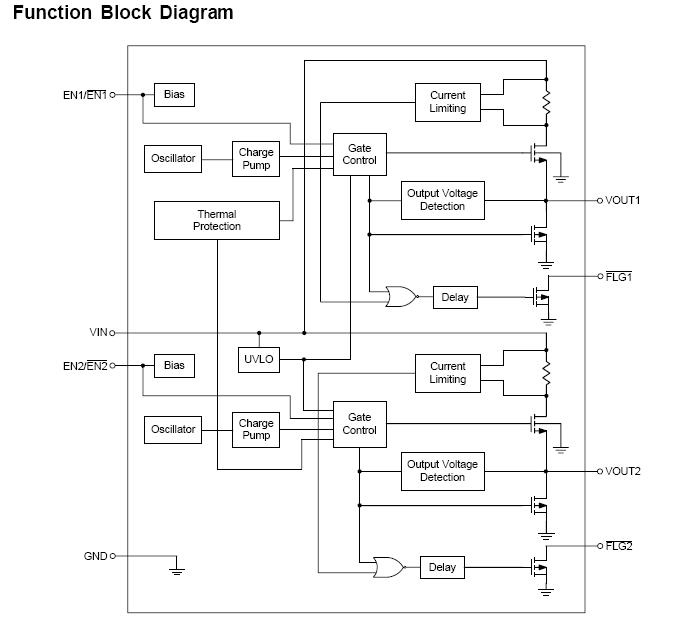

The RT9712BGS is a power-distribution switch. It is designed to fulfill the applications in heavy capacitive loads and short circuit situations. The RT9712BGS incorporates two 90mΩ NMOSFET power switches to fit power distribution systems requiring multiple power switches in a single package. During switching process, an internal charge pump is designed to provide the gate drive for the purpose of power switch rise times and fall times controlling to minimize the current surges. The charge pump can operate in supply voltage as low as 2.7V and needs no external components. The applications of the RT9712BGS include USB Peripherals and Notebook PCs.

Parametrics

RT9712BGS absolute maximum ratings: (1)Supply Input Voltage, VIN: 6V; (2)EN Voltage: -0.3V to 6V; (3)Power Dissipation, PD @ TA = 25℃; (4)SOP-8/MSOP-8: 469mW; (5)Package Thermal Resistance (Note 2); (6)SOP-8/MSOP-8, θJA: 160℃/W; (7)Junction Temperature: 150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)ESD Susceptibility (Note 3); (11)HBM (Human Body Model): 2kV.

Features

RT9712BGS features: (1)90mΩ N-MOSFET Switch; (2)Operating Voltage Range : 2.7V to 5.5V; (3)Reverse Blocking Current; (4)Under Voltage Lockout; (5)Deglitched Fault Report (FLGx); (6)Thermal Protection with Foldback; (7)Over Current Protection; (8)Short Circuit Protection; (9)UL Approved E219878; (10)Nemko Approved-NO49352; (11)RoHS Compliant and Halogen Free.
