Product Summary
The SA5211D is a 28kW transimpedance, wide-band, low noise amplifier with differential outputs, particularly suitable for signal recovery in fiber optic receivers. The part is ideally suited for many other RF applications as a general purpose gain block. The applications of the SA5211D include Fiber optic receivers, analog and digital, Current-to-voltage converters, Wide-band gain block, Medical and scientific Instrumentation, Sensor preamplifiers, Single-ended to differential conversion, Low noise RF amplifiers and RF signal processing.
Parametrics
SA5211D absolute maximum ratings: (1)VCC, Power supply: 6 V; (2)TA, Operating ambient temperature range: -40 to +85℃; (3)TJ, Operating junction temperature range: -55 to +150℃; (4)TSTG, Storage temperature range: -65 to +150 ℃; (5)PD, MAX Power dissipation, TA=25℃ (still-air): 1.0 W; (6)IIN, MAX Maximum input current: 5 mA; (7)qJA, Thermal resistance: 125℃/W.
Features
SA5211D features: (1)Extremely low noise: 1.8pA/Hz; (2)Single 5V supply; (3)Large bandwidth: 180MHz; (4)Differential outputs; (5)Low input/output impedances; (6)High power supply rejection ratio; (7)28kW differential transresistance.

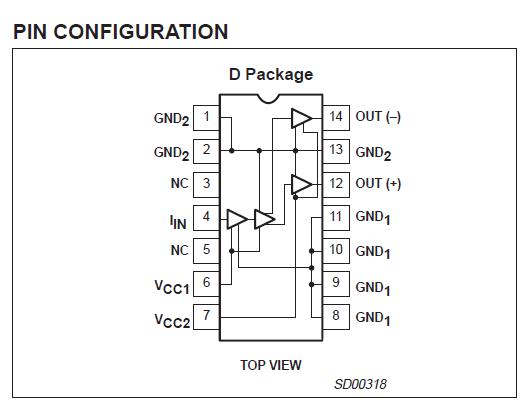

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SA5211D/01,112 |
NXP Semiconductors |
Special Purpose Amplifiers TRANSIMP AMP 180MHZ |
Data Sheet |
Negotiable |
|
||||
|
SA5211D/01,118 |
NXP Semiconductors |
Transimpedance Amplifiers TRANSIMPEDANCE AMP (180 MHZ) |
Data Sheet |
Negotiable |
|
||||
 |
SA5211D,602 |
|
IC TRANSIMP AMP 180MHZ 14-SOIC |
Data Sheet |
Negotiable |
|
||||
