Product Summary

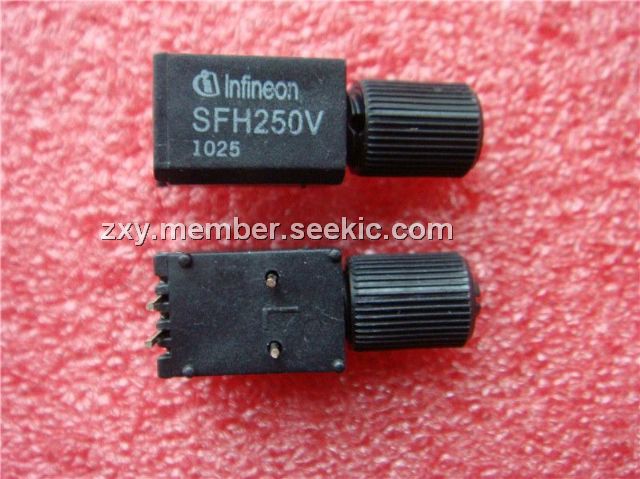

The SFH250V is a low-cost 650nm receiver diode for simple optical data transmission with polymer optical fiber. It incorporates an analog photodiode and can be used for speeds up to 100MBd. The transparent plastic package of SFH250V has an aperture where the the 2.2mm fiber end can be inserted and fixed with glue. This easy coupling method is extremely cost-effective. The V-housing allows easy coupling of unconnectorized 2.2mm plastic optical fiber by means of an axial locking screw. The applications of the SFH250V include Household Electronics, Power Electronics, Optical Networks, Light Barriers.
Parametrics
SFH250V absolute maximum ratings: (1)Operating Temperature Range: –40 to +85 ℃; (2)Storage Temperature Range: –40 to +100 ℃; (3)Junction Temperature: 100 ℃; (4)Soldering Temperature (2mm from case bottom, t ≤ 5 s): 260 ℃; (5)Reverse Voltage: 30 V; (6)Power Dissipation: 100 mW; (7)Thermal Resistance, Junction/Air: 750 K/W.
Features
SFH250V features: (1)2.2 mm Aperture holds Standard 1000 Micron Plastic Fiber; (2)No Fiber Stripping Required; (3)Fast Switching Time; (4)Good Linearity; (5)Sensitive in visible and near IR Range; (6)Molded Microlens for Efficient Coupling.

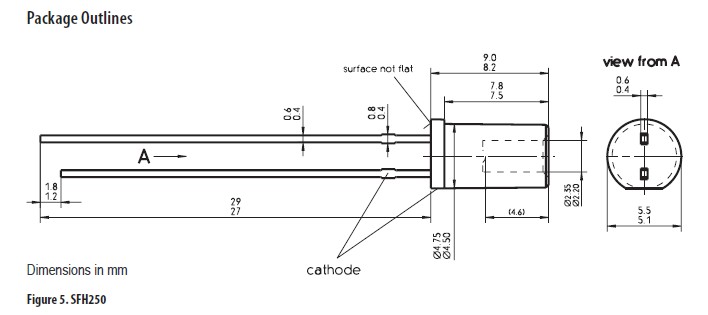

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH250 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH2500 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH250V |
|
HOUSING CONNECTOR DIODE PLASTIC |
Data Sheet |
Negotiable |
|
||||
|
SFH250F |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH2505FA |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH2505 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH2500FA |
Other |
|
Data Sheet |
Negotiable |
|
||||
