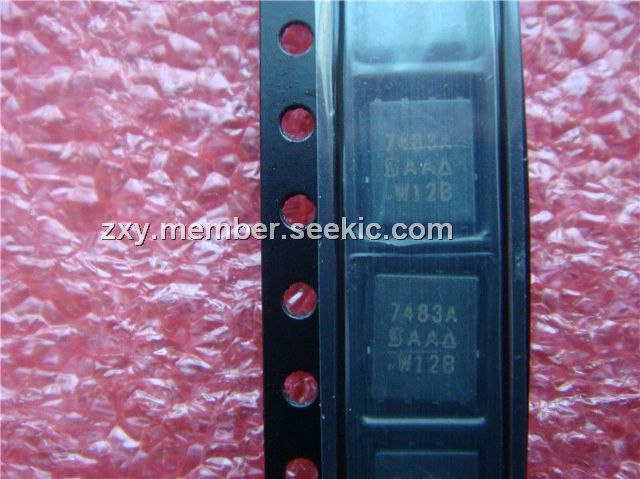

Product Summary

The SI7483ADP-T1-E3 is a kind of P-Channel 30V (D-S) MOSFET. The SI7483ADP-T1-E3 is ideal for: Battery and Load Switching (Notebook Computers and Notebook Battery Packs).

Parametrics

SI7483ADP-T1-E3 absolute maximum ratings: (1)Drain-Source Voltage VDS: - 30V; (2)Gate-Source Voltage VGS: ± 20V; (3)Pulsed Drain Current IDM: - 60V; (4)Operating Junction and Storage Temperature Range TJ, Tstg: - 55 to 150℃; (5)Soldering Recommendations (Peak Temperature): 260℃.

Features

SI7483ADP-T1-E3 features: (1)Halogen-free According to IEC 61249-2-21 Available; (2)TrenchFET Power MOSFETS; (3)New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile; (4)100 % Rg tested.

Diagrams

SI7483ADP-T1-E3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI7483ADP-T1-E3
SI7483ADP-T1-E3
Vishay/Siliconix
MOSFET 30V 24A 5.4W 5.7mohm @ 10V
Data Sheet
0-1: $1.88
1-10: $1.45
10-100: $1.32
100-250: $1.18
