Product Summary

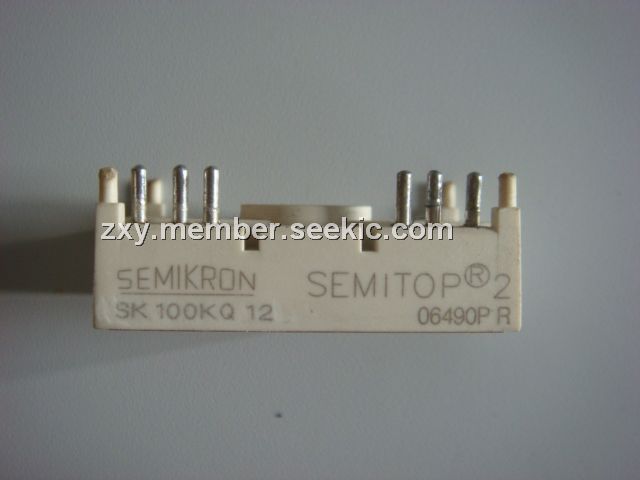

The SK100KQ12 is an antiparallel thyristor module.

Parametrics

SK100KQ12 absolute maximum ratings: (1)IRMS: 71 A at TS=100℃, 101 A at TS=85℃; (2)ITSM: 1500 A at Tvj=25, 10 ms, 1350 A at Tvj=125℃, 10 ms; (3)i2t: 11250 A2s at Tvj=25℃, 9100 A2s at Tvj=125℃; (4)VT: 1.8 V max at Tvj=25℃, IT=200 A; (5)VT(TO): 0.9 V max at Tvj=125℃; (6)rT: 4.5 mΩ max at Tvj=125℃; (7)IDD; IRD: 1 mA max at Tvj=25℃, VRD=VRRM, 20 mA max at Tvj=125℃, VRD=VRRM.

Features

SK100KQ12 features: (1)compact design one screw mounting; (2)heat transfer and isolation through direct copper bonded aluminium oxide ceramic; (3)glass passived thyristor chips; (4)up to 1600 V reverse voltage; (5)UL recognized, file no. E 63 532.

Diagrams

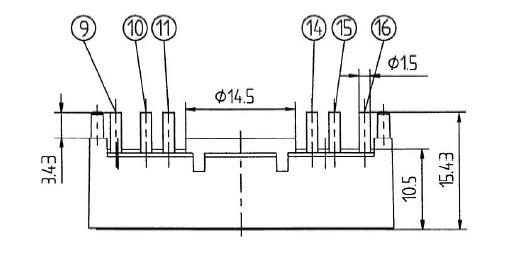

SK100KQ12 dimension diagram
