Product Summary

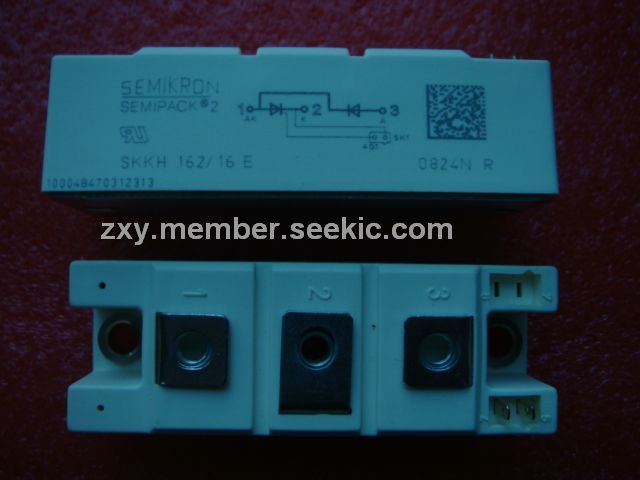

The SKKH162/16E is a thyristor. The typical applications of the device include DC motor control, temperature control and professional light dimming.

Parametrics

SKKH162/16E absolute maximum ratings: (1)ITAV: 156A when Tc=85℃; 110A when Tc=100℃; (2)ID: 190/230A when Ta=35℃, B2/B6; (3)IRMS: 265A when Ta=35μ; (4)ITSM: 5400A when Tvj=25℃, 10ms; 5000A when Tvj=125℃, 10ms; (5)i2t: 145000A2S when Tvj=25℃; 125000A2S when Tvj=125℃; (6)VT: 16V max when Tvj=25℃, IT=500A; (7)VT(TO): 0.85V when Tvj=125℃.

Features

SKKH162/16E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joins for high reliability; (3)UL recognized, file no. E 63532.

Diagrams
