Product Summary

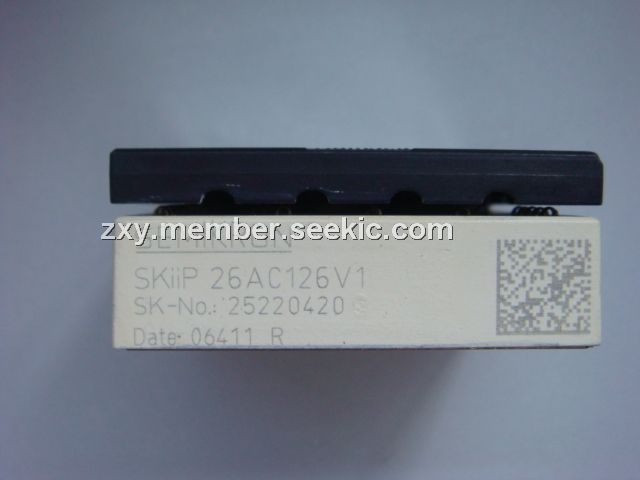

The SKiiP26AC126V1 is a kind of 3-phase bridge inverter. Typical applications for the SKiiP26AC126V1 include inverter up to 36 kVA and typical motor power 18,5 kW.
Parametrics
SKiiP26AC126V1 absolute maximum ratings: (1)IGBT - Inverter: VCES: 1200V; IC, Ts = 25 (70) ℃: 88 (66)A; ICRM, tp < 1 ms: 140A; VGES: ±20V; Tj: -40 to + 150oc; (2)Diode - Inverter: IF, Ts = 25 (70) ℃: 91 (68)A; IFRM, tp < 1 ms: 140A; Tj: -40 to + 150℃; (3)ItRMS, per power terminal (20 A / spring): 100A; (4)Tstg: Top≦Tstg: -40 to + 125℃; (5)Visol, AC, 1 min: 2500V.
Features
SKiiP26AC126V1 features: (1)Fast Trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no. E63532.

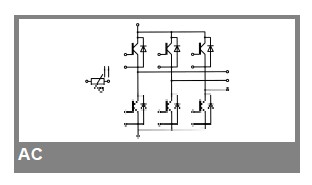

Diagrams
 |
