Product Summary

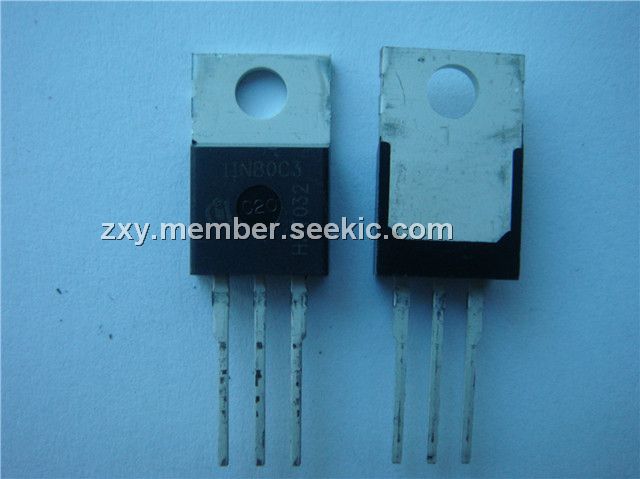

The SPP11N80C3 is a cool MOS power transistor.

Parametrics

SPP11N80C3 absolute maximum ratings: (1)Continuous drain current, TC = 25℃, ID: 11A; (2)Continuous drain current, TC = 100℃, ID: 7.1A; (3)Pulsed drain current, tp limited by Tjmax, ID puls: 33 A; (4)Avalanche energy, single pulse, ID=2.2A, VDD=50V, EAS: 470mJ; (5)Avalanche energy, repetitive tAR limited by Tjmax, ID=11A, VDD=50V, EAR: 0.2mJ; (6)Avalanche current, repetitive tAR limited by Tjmax, IAR: 11A; (7)Gate source voltage VGS: ±20V; (8)Gate source voltage AC (f >1Hz), VGS: ±30V; (9)Power dissipation, TC = 25℃, Ptot: 156W; (10)Operating and storage temperature, Tj, Tstg: -55 to+150℃.

Features

SPP11N80C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv/dt rated; (5)Ultra low effective capacitances; (6)Improved transconductance; (7)P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute).

Diagrams

SPP11N80C3 simplified diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPP11N80C3
SPP11N80C3
Infineon Technologies
MOSFET COOL MOS N-CH 800V 11A
Data Sheet
0-245: $1.63
245-500: $1.32
500-1000: $1.12
1000-2000: $1.06
