Product Summary

The SSM2210 is a audio dual matched NPN transistor. It is also an ideal choice for accurate and reliable current biasing and mirroring circuits. Furthermore,since a current mirror’s accuracy degrades exponentially with mismatches of VBE’s between transistor pairs the low VOS of the SSM2210 will preclude offset trimming in most circuit applications.

Parametrics

SSM2210 absolute maximum ratings: (1)collector current: 20 mA; (2)emitter current: 20 mA; (3)collector-collector voltage: 40 V; (4)collector-base voltage: 40 V; (5)collector-emitter voltage: 40 V; (6)emitter-emitter voltage: 40 V; (7)operating temperature range: -40 to +85 ℃; (8)junction temperature range: -65 to +125 ℃; (9)lead temperature(soldering,60 sec): +300 ℃.

Features

SSM2210 features: (1)very low voltage noise is @ 100MHz,1nV/√Hz MAx; (2)excellent current gain match is 0.5% Typ; (3)tight VBE match (Vos) is 200μV Max; (4)outstanding offset voltage drift is 0.03μV/℃ Typ; (5)high gain-bandwith product is 200MHz Typ; (6)low cost; (7)direct replacement for LM394BN/CN.

Diagrams

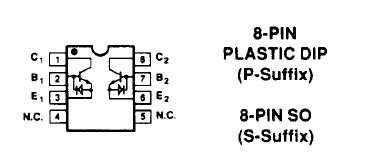

SSM2210 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SSM2210
SSM2210
Other

Data Sheet
Negotiable
SSM2210P
SSM2210P
Analog Devices Inc
IC TRANS AUDIO DUAL NPN 8-DIP
Data Sheet
Negotiable

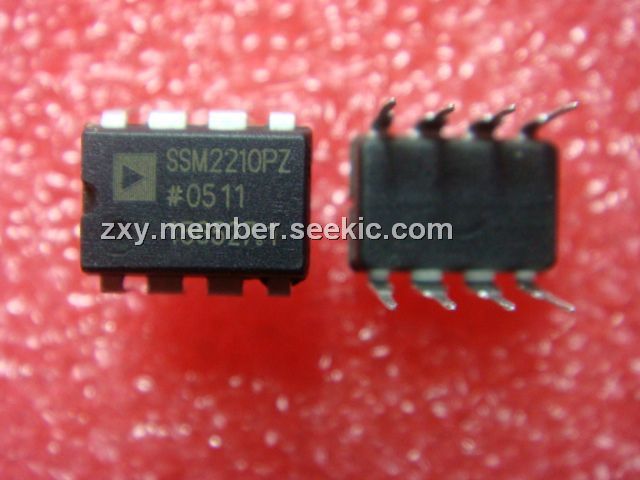

SSM2210PZ
SSM2210PZ
Analog Devices Inc
IC TRANS AUDIO DUAL NPN 8-DIP
Data Sheet
1-25: $2.76
25-100: $2.33
100-250: $2.25
250-500: $2.19
SSM2210S
SSM2210S
Analog Devices Inc
IC TRANSISTOR AUDIO MATCH 8SOIC
Data Sheet
1-98: $2.89
SSM2210S-REEL
SSM2210S-REEL
Analog Devices Inc
IC TRANS AUDIO DUAL NPN 8-SOIC
Data Sheet
1-2500: $2.24
SSM2210SZ
SSM2210SZ
Analog Devices Inc
IC TRANSISTOR AUDIO MATCH 8SOIC
Data Sheet
1-25: $2.76
25-100: $2.33
100-250: $2.25
250-500: $2.19
SSM2210SZ-REEL
SSM2210SZ-REEL
Analog Devices Inc
IC TRANS AUDIO DUAL NPN 8SOIC TR
Data Sheet
1-2500: $2.14
