Product Summary

The M/A-COM SW-475 GaAs monolithic switch provides high isolation in a low-cost, plastic surface mount package. The SW-475 is ideal for applications across a broad range of frequencies including synthesizer switching, transmit / receive switching, switch matrices and filter banks in systems such as radio and cellular equipment, PCS, GPS, and fiber optic modules. M/A-COM fabricates the SW-475 using an 0.5-micron gate length MESFET process. The process features full chip passivation for performance and reliability.

Parametrics

SW-475 absolute maximum ratigns: (1)Max Input Power (0.5 - 3.0 GHz): 3 V Control: +30 dBm; 5 V Control: +33 dBm; (2)Operating Voltage: +8.5 volts; (3)Operating Temperature: -40 ℃ to +85 ℃; (4)Storage Temperature: -65 ℃ to +150 ℃.

Features

SW-475 features: (1)Positive Voltage Control (0 / +5 V); (2)High Isolatio(53 dB typ. @ 0.9 GHz, 50 dB typ @ 1.9 GHz); (3)50-Ohm Internal Terminations; (4)Low InsertioLoss (0.6 dB typ. @ 0.9 GHz, 0.7 dB typ. @ 1.9 GHz); (5)4 mm FQFP-N 16-Lead Package.

Diagrams

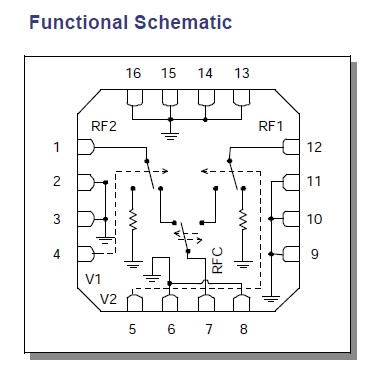

SW-475 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SW-475
SW-475
Other

Data Sheet
Negotiable
