Product Summary

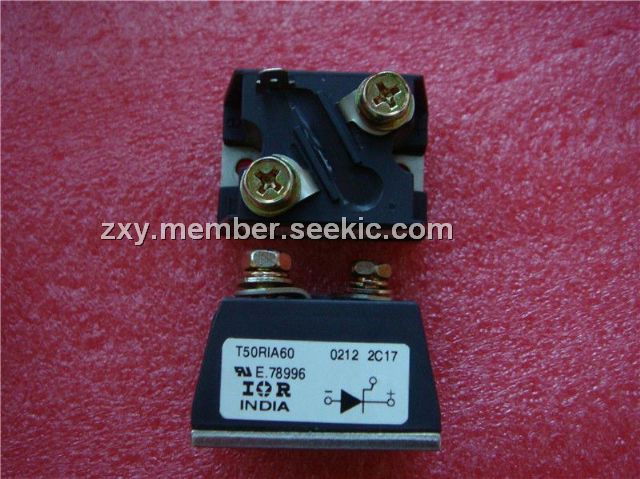

The T50RIA60 is a kind of Medium Power Phase Control Thyristor (Power Module), which is intended for general purpose applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits. The T50RIA60 is electrically isolated from the metal base, allowing common heatsinks and compact assemblies to be built.

Parametrics

T50RIA60 absolute maximum ratings: (1)IT(AV), 70 ℃: 50 A; (2)IT(RMS): 80 A; (3)ITSM: 50 Hz: 1310 A; 60 Hz: 1370 A; (4)I2t: 50 Hz: 8550 A2s; 60 Hz: 7800 A2s; (5)I2√t: 85500 A2√s; (6)VRRM Range: 100 to 1200 V; (7)TJ: - 40 to 125 ℃.

Features

T50RIA60 features: (1)Electrically isolated base plate; (2)Types up to 1200 VRRM; (3)3500 VRMS isolating voltage; (4)Simplified mechanical designs, rapid assembly; (5)High surge capability; (6)Large creepage distances; (7)UL E78996 approved; (8)RoHS compliant; (9)Designed and qualified for industrial level.

Diagrams

T50RIA60 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T50RIA60
T50RIA60

SCR PHASE CONT 600V 50A D-55
Data Sheet
0-10: $18.02
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T50R-CY
T50R-CY
Panduit
Tubing & Sleeving - (Non-shrink) Spiral Wrap .50" (12.7mm)x100' Flame
Data Sheet
0-1: $172.94
1-5: $157.22
T50RIA
T50RIA
Other

Data Sheet
Negotiable
T50RIA100
T50RIA100

SCR PHASE CONT 1000V 50A D-55
Data Sheet
0-10: $18.64
T50RIA120
T50RIA120

SCR PHASE CONT 1200V 50A D-55
Data Sheet
0-10: $19.73
T50RIA20
T50RIA20

SCR PHASE CONT 200V 50A D-55
Data Sheet
0-10: $17.18
T50RIA40
T50RIA40

SCR PHASE CONT 400V 50A D-55
Data Sheet
0-20: $17.00
