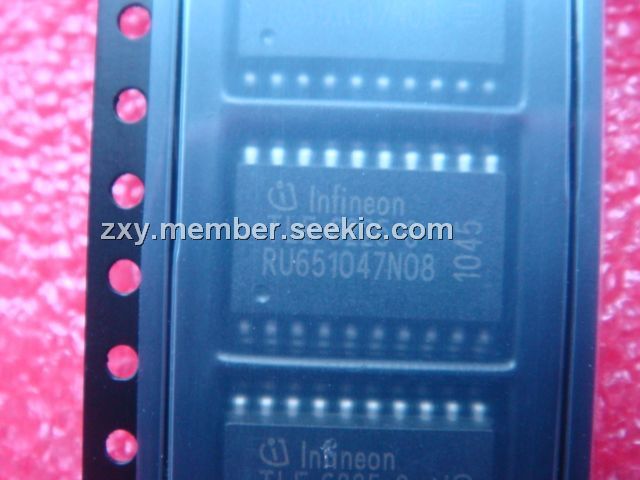

Product Summary
The TLE6225G is a smart quad low-side switch. It is protected by embedded protection functions and designed for automotive and industrial applications, to drive lines, lamps and relays. The applications of the TLE6225G include: (1)μs compatible power switch for 12 V applications; (2)Switch for automotive and industrial systems; (3)Line, relay or lamp driver.
Parametrics
TLE6225G absolute maxing ratings: (1)Supply Voltage VS: -0.3 to +40 V; (2)Continuous Drain Source Voltage (OUT1...OUT4) VDS: -0.7 to +45 V; (3)Input Voltage, IN1 - IN4 VIN: -0.3 to +7 V; (4)Input Voltage, PRG, ENA VIN: -0.3 to +40 V; (5)FAULT Output Voltage VFault: -0.3 to +40 V; (6)Operating Temperature Range Tj: -40 to +150℃; (7)Storage Temperature Range Tstg:-55 to +150℃; (8)Output Current per Channel ID(lim): ID(lim) minA; (9)Output Clamping Energy ID= 0.2 A EAS: 10mJ.
Features
TLE6225G features: (1)Shorted circuit protection; (2)Overtemperature protection; (3)Overvoltage protection; (4)Open Load Detection; (5)Direct parallel control of the inputs; (6)Inputs high or low active programmable; (7)General fault flag; (8)Very low standby quiescent current; (9)Compatible with 3V microcontrollers; (10)Electostatic discharge (ESD) protection.

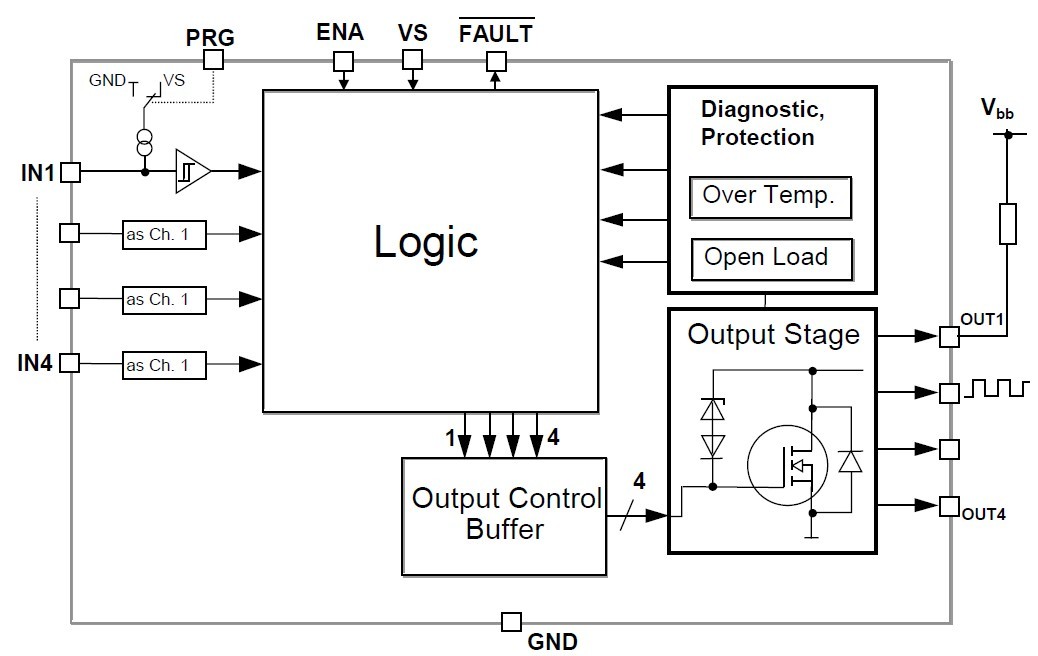

Diagrams
