Product Summary

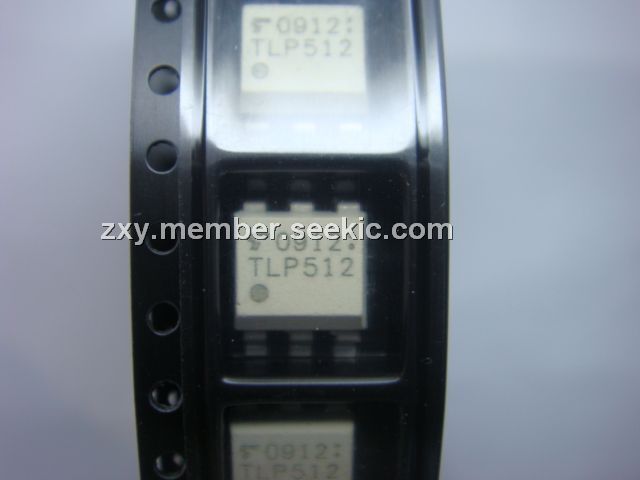

The TLP512 is a photocoupler. It consists of a GaAAs high-output light emitting diode and a high-speed detector that contains a PN photodiode and an amplifier transistor into a single chip.
Parametrics
TLP512 absolute maxing ratings: (1)DC forward current IF: 25mA; (2)Pulse forward current IFP: 50mA; (3)Peak transient forward current IFPT: 1A; (4)DC reverse voltage VR: 5V; (5)Diode power dissipation PD: 45mW; (6)Operating temperature range Topr: -55 to 100℃; (7)Storage temperature range Tstg: -55 to 125℃; (8)Soldering temperature (10 s) Tsol: 260℃; (9)Isolation voltage (R.H. ≤ 60%, AC 1 min) BVS: 2500 Vrms.
Features
TLP512 features: (1)Isolation voltage: 2500 Vrms (min); (2)Switching speed: tpHL = 0.8μs, tpLH = 0.8μs(max)@RL = 1.9kΩ; (3)TTL compatible; (4)UL recognized: UL1577, file No. E67349.

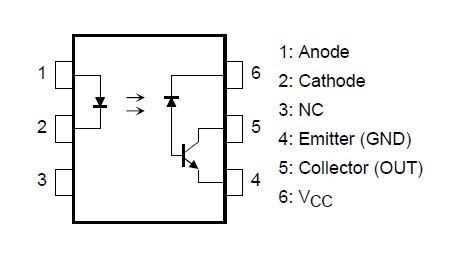

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP512 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP512(F) |
Toshiba |
Transistor Output Optocouplers IC HI SPD (1 Mbps) |
Data Sheet |
|
|
||||||||||||
