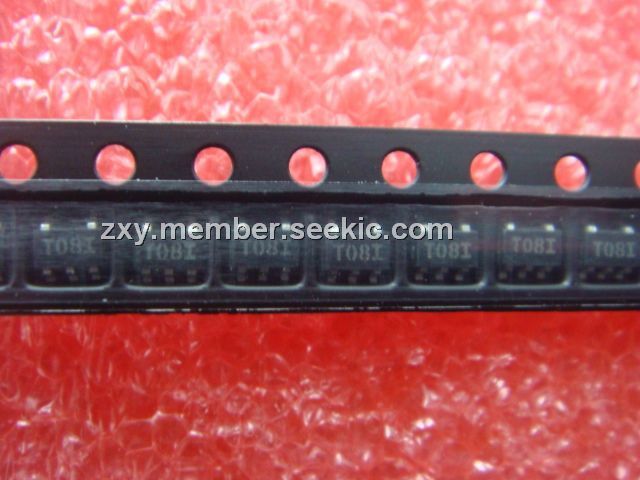

TPS72301DBVR

Product Summary

The TPS72301DBVR low-dropout (LDO) negative voltage regulator offers an ideal combination of features to support low noise applications. The device is capable of operating with input voltages from -10 V to -2.7 V, and supporting outputs from -10 V to -1.2 V. The regulator is stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions. Thermal short-circuit and over-current protection is provided by internal detection and shutdown logic. High PSRR (65 dB at 1 k Hz) and low noise (60 μVRMS) make the TPS72301DBVR ideal for low-noise applications. The TPS72301DBVR uses a precision voltage reference to achieve 2% overall accuracy over load, line, and temperature variations. Available in a small SOT23.5 package, the TPS72301DBVR is fully specified over a temperature range of -40℃ to 125℃. The applications of the TPS72301DBVR are: Optical Drives; Optical Networking; Noise Sensitive Circuitry; GaAs FET Gate Bias; Video Amplifiers.

Parametrics

TPS72301DBVR absolute maximum ratings: (1)Input voltage range, VIN -11 V to 0.3 V; (2)Enable voltage range, V(EN) VI to 5 V; (3)Output voltage range, VOUT -11 + VDO; (4)Output current, IOUT Internally limited; (5)Output short-circuit duration Indefinite; (6)Continuous total power dissipation, PD See Dissipation Rating Table; (7)Junction temperature range, TJ -55℃ to 150℃; (8)Storage temperature range, Tstg -65℃ to 150℃; (9)ESD rating, HBM 2 kV.

Features

TPS72301DBVR features: (1)Ultralow Noise: 60-μVRMS Typical; (2)High PSRR: 65-dB Typical at 1 kHz; (3)Low Dropout Voltage: 280-mV Typical at 200 mA, 2.5 V; (4)Available in .2.5 V, and Adjustable (-1.2 V to -10 V) Versions; (5)Stable With a 2.2-μF Ceramic Output Capacitor; (6)Less Than 2-μA Typical Quiescent Current in Shutdown Mode; (7)2% Overall Accuracy (Line, Load, Temperature); (8)Thermal and Overcurrent Protection; (9)5-Pin SOT-23 (DBV) Package; (10)-40℃ to 125℃ Operating Junction Temperature Range.

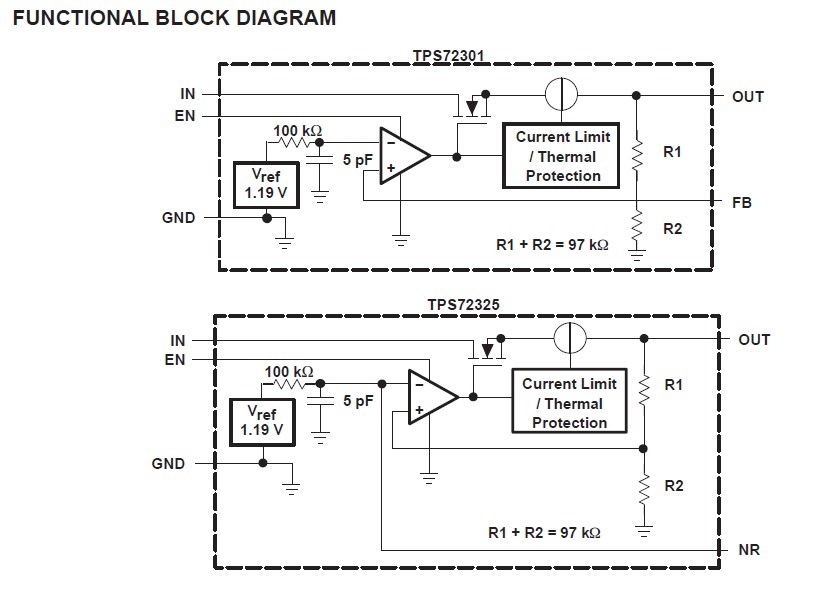

Diagrams
