Product Summary

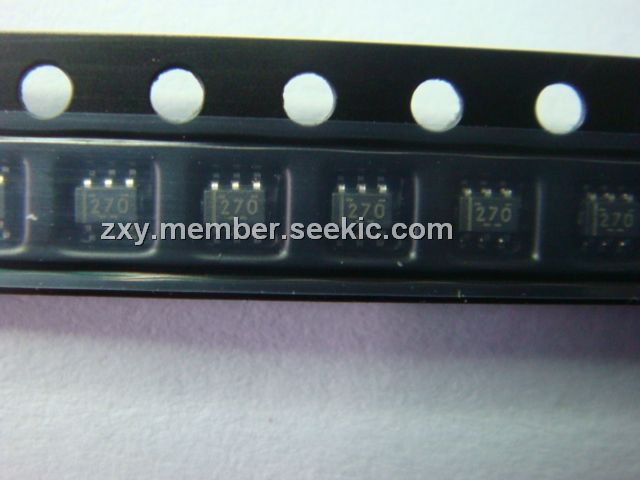

The TXB0101DCKR is a 1-bit bidirectional voltage-level transistor with auto direction sensing and ±15kV esd protection. The TXB0101DCKR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
Parametrics
TXB0101DCKR absolute maxing ratings: (1)VCCA Supply voltage range: min=–0.5V; max=4.6V; (2)VCCB Supply voltage range: min=–0.5V; max=6.5V; (3)VI Input voltage range(2): min=–0.5V; max=6.5V; (4)VO Voltage range applied to any output in the high-impedance or power-off state: min=–0.5V, max=6.5V; (5)VO Voltage range applied to any output in the high or low state A port: min=–0.5V, max=VCCA + 0.5V; B port: min=–0.5V, max=VCCB + 0.5V; (6)IIK Input clamp current VI < 0: max=–50mA; (7)IOK Output clamp current VO < 0: max=–50mA; (8)IO Continuous output current: max=±50mA; Continuous current through VCCA, VCCB, or GND: max=±100mA.
Features
TXB0101DCKR features: (1)Available in the Texas Instruments NanoFree Package; (2)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB); (3)VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State; (4)OE Input Circuit Referenced to VCCA; (5)Low Power Consumption, 5-μA Max ICC; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (8)ESD Protection Exceeds JESD 22: A Port: 2000-V Human-Body Model (A114-B); 250-V Machine Model (A115-A); 1500-V Charged-Device Model (C101); B Port: 15-kV Human-Body Model (A114-B); 250-V Machine Model (A115-A); 1500-V Charged-Device Model (C101).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TXB0101DCKR |
Texas Instruments |
Translation - Voltage Levels 1B Bidir Vltg-Level Translator |
Data Sheet |
|
|
||||||||||||
|
TXB0101DCKRG4 |
Texas Instruments |
Translation - Voltage Levels 1B Bidir Vltg-Level Translator |
Data Sheet |
|
|
||||||||||||
