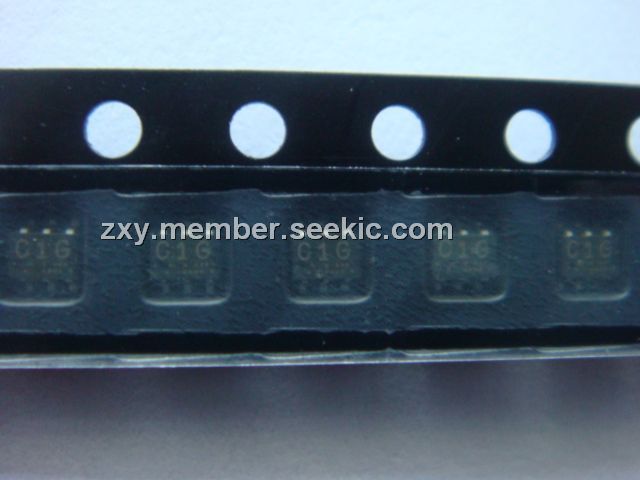

Product Summary
The UPC2711TB-E3 is a Silicon MMIC Wideband Amplifier manufactured using 20 GHz fT NESAT Ⅲ silicon bipolar process of NEC. The device is designed for use as buffer amps in DBS tuners. The UPC2711TB-E3 is pin compatible and has comparable performance as the larger UPC2711/12T, so it is suitable for use as a replacement to help reduce system size. The IC is housed in a 6 pin
super minimold or SOT-363 package.
Parametrics
UPC2711TB-E3 absolute maxing ratings: (1)VCC Supply Voltage: 6V; (2)PIN Input Power: +10dBm; (3)PT Total Power Dissipation2: 200mW; (4)TOP Operating Temperature: -45 to +85℃; (5)TSTG Storage Temperature: -55 to +150℃.
Features
UPC2711TB-E3 features: (1)HIGH DENSITY SURFACE MOUNTING: 6 pin super minimold or SOT- 363 package; (2)SUPPLY VOLTAGE: VCC = 4.5 to 5.5 V; (3)WIDEBAND RESPONSE: fu = 2.9 GHz TYP; (4)POWER GAIN: GP = 13 dB TYP.

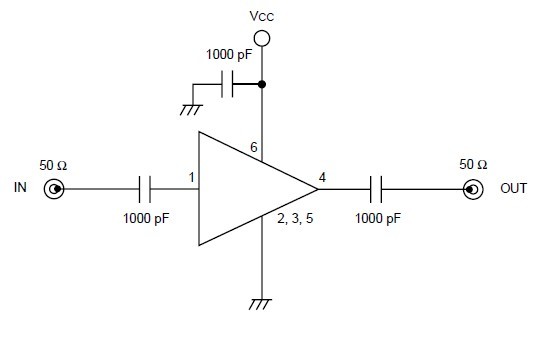

Diagrams
