Product Summary
The VPC3230D-QA-C5 is a high-quality, single-chip video front-end, which is targeted for 4:3 and 16:9, 50/60 and 100/120 Hz TV sets. It can be combined with other members of the DIGIT3000 IC family (such as DDP 33x0A/B, TPU 3040) and/or it can be used with 3rd-party products.
Parametrics
VPC3230D-QA-C5 absolute maxing ratings: (1)TA Ambient Operating Temperature: min=0, max=65℃; (2)TS Storage Temperature: min=-40℃, max=125℃; (3)VSUPA/D Supply Voltage, all Supply Inputs: min=-0.3V, max=6V; (4)VI Input Voltage, all Inputs: min=-0.3V, max=VSUPA+0.3V; (5)VO Output Voltage, all Outputs: min=-0.3V, max=VSUPD+0.3V.
Features
VPC3230D-QA-C5 features: (1)high-performance adaptive 4H comb filter Y/C separator with adjustable vertical peaking; (2)multi-standard color decoder PAL/NTSC/SECAM including all substandards; (3)four CVBS, one S-VHS input, one CVBS output; (4)two RGB/YCrCb component inputs, one Fast Blank (FB) input; (5)integrated high-quality A/D converters and associated clamp and AGC circuits.

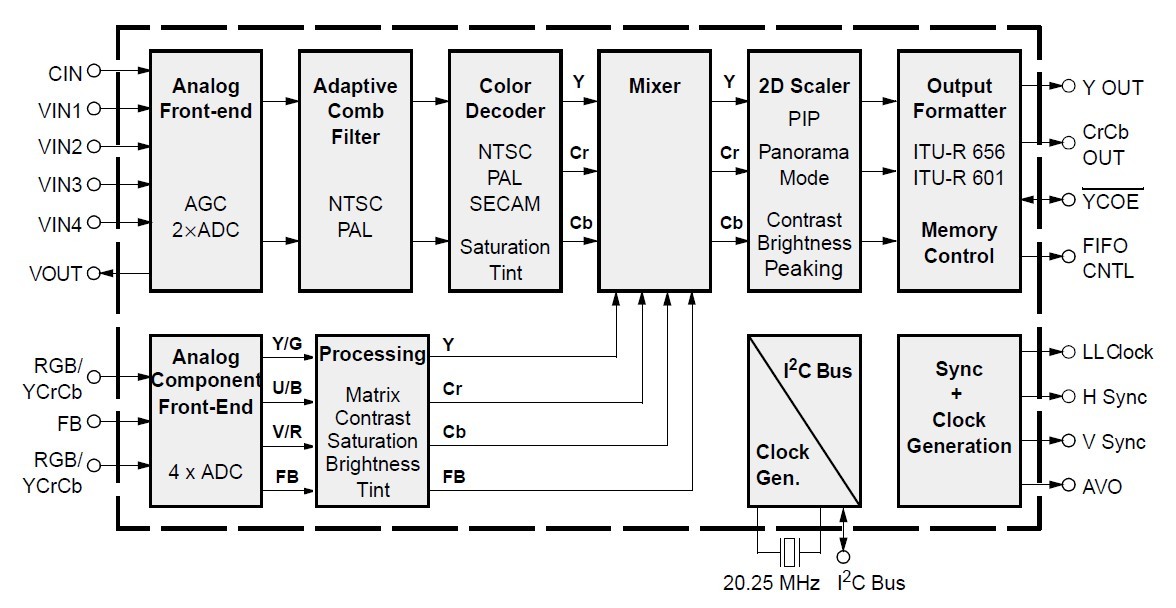

Diagrams
 |
