WM8960GEFL

Product Summary

The WM8960GEFL is a low power, high quality stereo codec designed for portable digital audio applications. Stereo class D speaker drivers provide 1W per channel into 8Ω loads with a 5V supply. Low leakage, excellent PSRR and pop/click suppression mechanisms also allow direct battery connection to the speaker supply. Flexible speaker boost settings allow speaker output power to be maximised while minimising other analogue supply currents. A highly flexible input configuration for up to three stereo sources is integrated, with a complete microphone interface. External component requirements of the WM8960GEFL are drastically reduced as no separate microphone, speaker or headphone amplifiers are required. The applications of the WM8960GEFL include: (1)Games consoles; (2)Portable media / DVD players; (3)Mobile multimedia.

Parametrics

WM8960GEFL absolute maxing ratings: (1)Supply voltages (excluding SPKVDD1 and SPKVDD2): min=-0.3V, max=+4.5V; (2)SPKVDD1, SPKVDD2: min=-0.3V, max=+7V; (3)Voltage range digital inputs: min=DGND-0.3V, max=DBVDD+0.3V; (4)Voltage range analogue inputs: min=AGND-0.3V, max=AVDD+0.3V; (5)Operating temperature range, TA: min=-40℃, max=+85℃; (6)Storage temperature after soldering: min=-65℃, max=+150℃.

Features

WM8960GEFL features: (1)DAC SNR 98dB (A weighted), THD -84dB at 48kHz, 3.3V; (2)ADC SNR 94dB (A weighted), THD -82dB at 48kHz, 3.3V; (3)Pop and click suppression; (4)3D Enhancement; (5)Stereo Class D Speaker Driver: <0.1% THD with 1W per channel into 8ΩBTL speakers; 70dB PSRR @217Hz; 87% efficiency (1W output); Flexible internal switching clock; (6)On-chip Headphone Driver: 40mW output power into 16Ωat 3.3V; Capless mode support; THD -75dB at 20mW, SNR 90dB with 16Ωload; (7)Microphone Interface: Pseudo differential for high noise immunity; Integrated low noise MICBIAS; Programmable ALC / Limiter & Noise Gate; (8)Low Power Consumption: 10mW headphone playback (2.7V / 1.8V supplies); 20mW record and playback (2.7V / 1.8V supplies); (9)Low Supply Voltages: Analogue 2.7V to 3.6V (Speaker supply up to 5.5V); Digital core and I/O: 1.71V to 3.6V; (10)On-chip PLL provides flexible clocking scheme; (11)Sample rates: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48; (12)5x5x0.9mm QFN package.

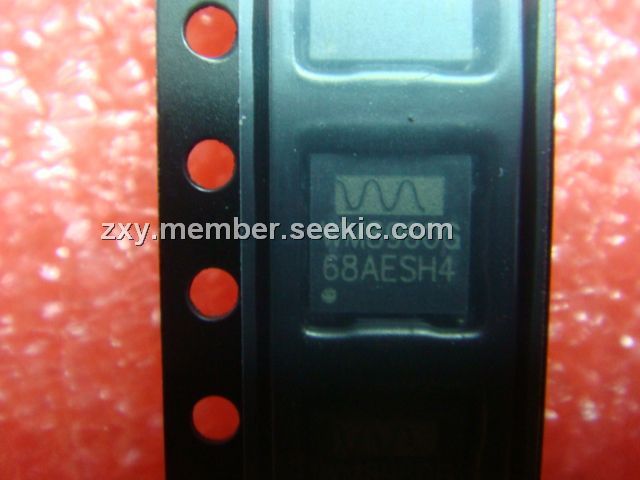

Diagrams
