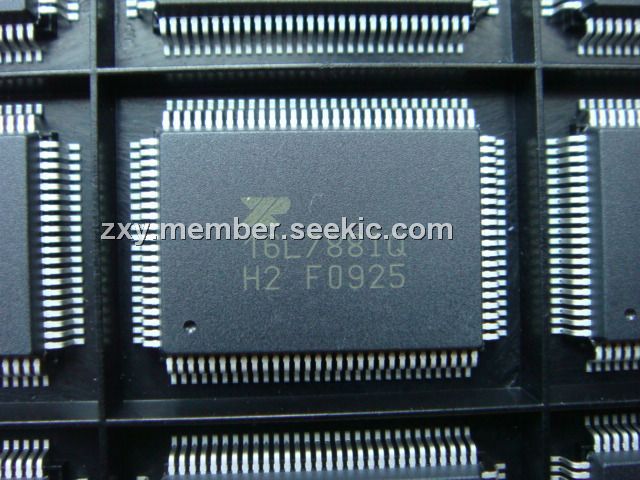

Product Summary
The XR16L788IQ is a 5V and 3.3V with 5V tolerant inputs octal Universal Asynchronous Receiver and Transmitter (UART). The highly integrated device is designed for high bandwidth requirement in communication systems. A new feature increases the XR16L788IQ driver efficiency includes a global interrupt pin with global interrupt source registers that provide complete and detailed interrupt status information for all 8 channels that will speed up interrupt parsing. The applications of the XR16L788IQ include Remote Access Servers, Ethernet Network to Serial Ports, Network Management, Factory Automation and Process Control, Point-of-Sale Systems, Multi-port RS-232/RS-422/RS-485 Cards.
Parametrics
XR16L788IQ absolute maximum ratings: (1)Power Supply Range: 7 Volts; (2)Voltage at Any Pin: -0.5 to 7V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃; (5)Package Dissipation: 500 mW; (6)Thermal Resistance (14x20x3.0mm 100-QFP): q-ja = 34℃/W , q-jc = 9℃/W.
Features
XR16L788IQ features: (1)5V and 3.3V with 5V Tolerant Inputs Operation; (2)Single Interrupt Output for all 8 UARTs; (3)Global Interrupt Source for all 8 UARTs; (4)5G "Flat" UART Registers for Configurations; (5)Simultaneous UART Channels Initialization; (6)Auto RS485 Half-duplex Control with Programmable Turn-around Delay; (7)A General Purpose 16-bit Timer/Counter; (8)Sleep Mode with Wake-up Indication; (9)Highly Integrated Device for Space Saving; (10)First eight registers are 16C550 compatible; (11)64-byte Transmit and Receive FIFOs; (12)Transmit and Receive FIFO Level Counters; (13)Programmable TX and RX FIFO Trigger Levels; (14)Automatic RTS/CTS or DTR/DSR Flow Control; (15)Selectable Hardware Flow Control Hysteresis.

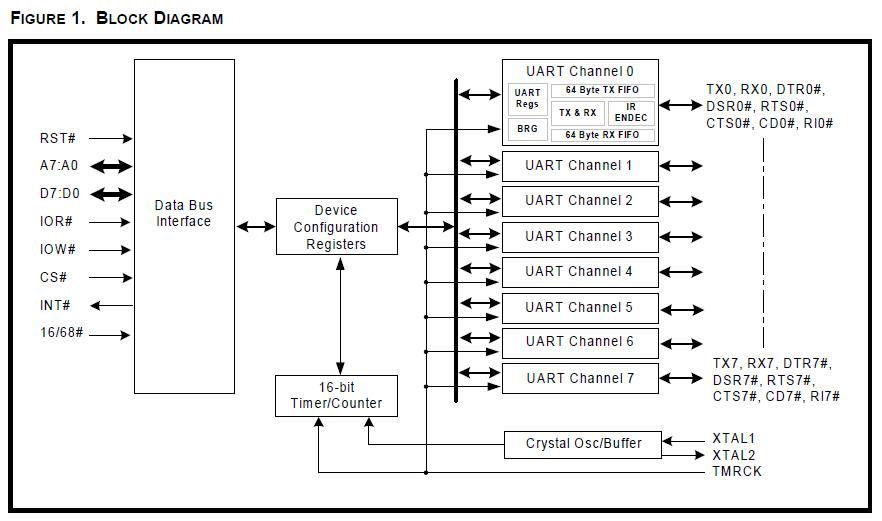

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XR16L788IQ-F |
Exar |
UART Interface IC 2.97V-5.5V 64B FIFO temp -45 to 85C |
Data Sheet |
|
|
||||||||||||
|
XR16L788IQTR-F |
Exar |
UART Interface IC 3.3V OCTAL UART |
Data Sheet |
|
|
||||||||||||
