Product Summary

The Z0103MN is suitable for general purpose AC switching applications. The Z0103MN can be found in applications such as home appliances(electrovalve, pump, door lock, small lamp control), fan speed controllers and so on. Different gate current sensitivities are available, allowing optimized performances when controlled directly from microcontrollers.

Parametrics

Z0103MN absolute maxing ratings: (1)IT(RMS) RMS on-state current (full sine wave) SOT-223 Ttab=90℃/TO-92 TI=50℃: 1A; (2)ITSM Non repetitive surge peak on-state current (full cycle, Tj initial=25℃)F=50Hz t=20ms: 8A; F=60Hz t=16.7ms: 8.5A; (3)I2t I2t Value for fusing tp=10ms: 0.35A2s; (4)dI/dt Critical rate of rise of on-state current IG=2×IGT , tr≤100ns F=120 Hz Tj=125℃: 20 A/μs; (5)IGM Peak gate current tp=20 μs Tj=125℃: 1A; (6)PG(AV) Average gate power dissipation Tj=125℃: 0.1W; (7)Tstg Storage junction temperature range: -40 to +150℃; Tj Operating junction temperature range: -40 to +125℃.

Features

Z0103MN features: (1)IT(RMS): 1A; (2)VDRM/VRRM: 600 to 800V; (3)IGT(Q1): 3 to 25mA.

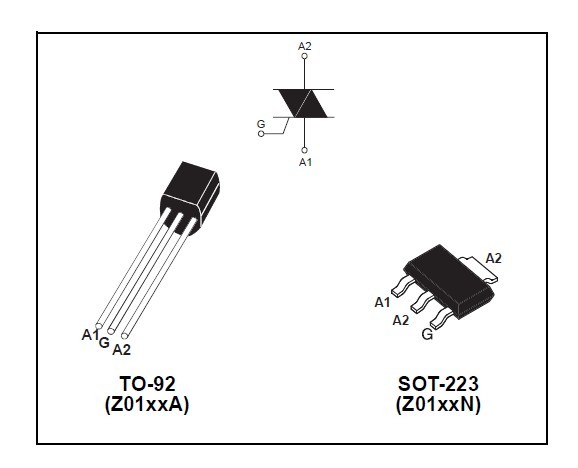

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
Z0103MN 5AA4
Z0103MN 5AA4
STMicroelectronics
Triacs 1.0 Amp 600 Volt
Data Sheet
0-1: $0.57
1-10: $0.44
10-100: $0.28
100-250: $0.27
Z0103MN 6AA4
Z0103MN 6AA4
STMicroelectronics
Triacs THYRISTOR TRIAC
Data Sheet
0-3250: $0.15
3250-4000: $0.15
Z0103MNT1G
Z0103MNT1G
ON Semiconductor
Triacs SENSITIVE GATE TRIAC
Data Sheet
0-1: $0.34
1-25: $0.26
25-100: $0.22
100-250: $0.19
Z0103MN,135
Z0103MN,135
NXP Semiconductors
Triacs 600V 1A
Data Sheet
0-1: $0.24
1-25: $0.20
25-100: $0.16
100-250: $0.14
Z0103MN0,135
Z0103MN0,135
NXP Semiconductors
Triacs 600 V 1 A SOT223
Data Sheet
0-1: $0.24
1-25: $0.20
25-100: $0.16
100-250: $0.14
Z0103MN5AA4
Z0103MN5AA4
Other

Data Sheet
Negotiable
