Product Summary
The Z85C3008PEC is a CMOS SCC serial communications controller. It is a pin and software compatible CMOS member of the SCC family introduced by ZiLOG in 1981. It is a dual channel, multi-protocol data communications peripheral that easily interfaces to CPU with either multiplexed or non-multiplexed address data buses. The Z85C3008PEC generates and checks CRC codes in any synchronous mode and can be programmed to check data integrity in various modes.
Parametrics
Z85C3008PEC absolute maximum ratings: (1)VCC supply voltage range: -0.3V to +7.0V; (2)Voltages on all pins with respect to GND: -3V to VCC +0.3V; (3)Storage temperature: -65℃ to +150℃.
Features
Z85C3008PEC features: (1)Improve functionality to ease sending back-to-back frames; (2)Automatic SDLC opening flag transmission; (3)Automatic T×underrun/EOM latch reset in SDLC mode; (4)Automatic RTS deactivation; (5)T×D pin forced high in SDLC NRZI mode after closing flag; (6)Complete CRC reception; (7)Improved response to abort sequence in status FIFO; (8)Automatic T×CRC generator press/rset; (9)Extended read for write registers; (10)Write data set-up timing improvement.

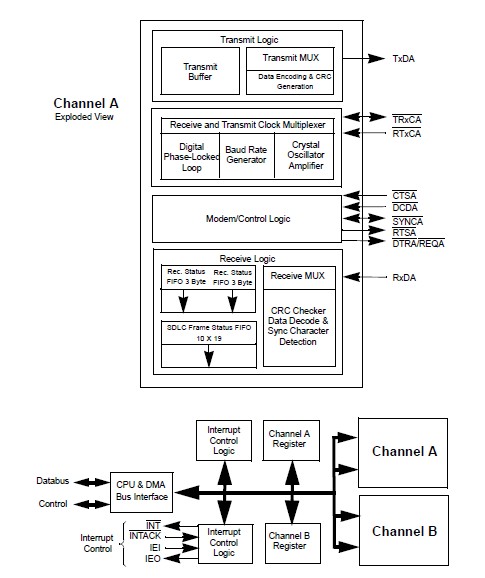

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z85C3008PEC |
ZiLOG |
I/O Controller Interface IC 8 MHz Z8500 CMOS XT |
Data Sheet |
Negotiable |
|
||||||||||
