Product Summary

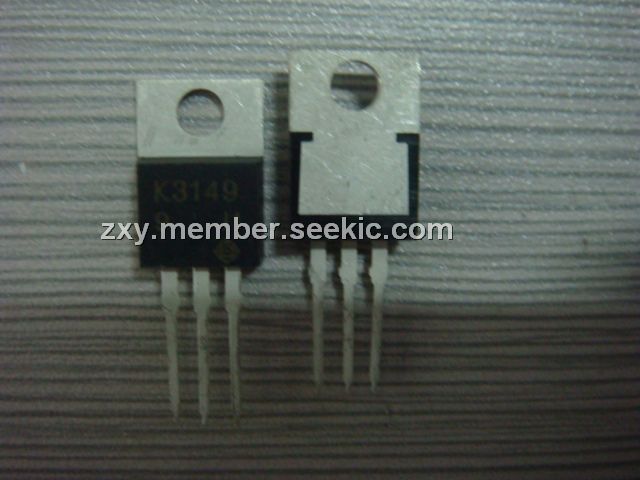

The 2SK3149 is a Silicon N Channel MOS FET High Speed Power Switching.
Parametrics
2SK3149 absolute maximum ratings: (1)Drain to source voltage VDSS: 100 V; (2)Gate to source voltage VGSS: ±20 V; (3)Drain current ID: 20 A; (4)Drain peak current ID(pulse): 80 A; (5)Body-drain diode reverse drain current IDR: 20 A; (6)Avalanche current IAP: 20 A; (7)Avalanche energy EAR: 40 mJ; (8)Channel dissipation Pch: 50 W; (9)Channel temperature Tch: 150 ℃; (10)Storage temperature Tstg: –55 to +150 ℃.
Features
2SK3149 features: (1)Low on-resistance: RDS =45 mΩ typ.; (2)High speed switching; (3)4 V gate drive device can be driven from 5 V source.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK3149 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
