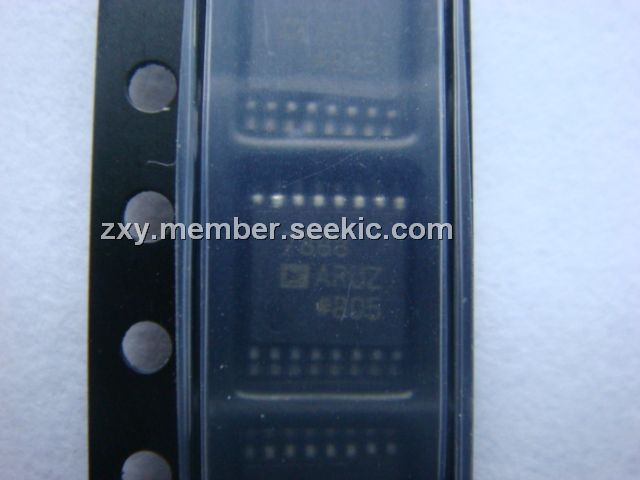

AD7888ARU

ADC, TSSOP, –0.3 V to +7 V, high speed, low power, 12-bit, Eight Single-Ended Inputs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: AD7888ARU

Brand:: Analog Devices - ADI | Pack: TSSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:AD7888ARU
US $3.00 - 5.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

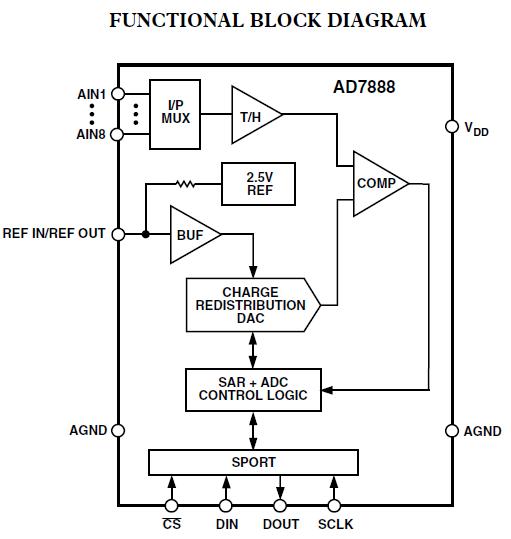

The AD7888ARU is a high speed, low power, 12-bit ADC that operates from a single 2.7 V to 5.25 V power supply. The AD7888ARU is capable of a 125 kSPS throughput rate. The input track-andhold acquires a signal in 500 ns and features a single-ended sampling scheme. The AD7888ARU contains eight single-ended analog inputs, AIN1 through AIN8. The analog input on each of these channels is from 0 to VREF. The part is capable of converting full power signals up to 2.5 MHz. The applications of the AD7888ARU include Battery-Powered Systems (Personal Digital Assistants, Medical Instruments, Mobile Communications), Instrumentation and Control Systems, High-Speed Modems.

Parametrics

AD7888ARU absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)Analog Input Voltage to AGND: –0.3 V to VDD + 0.3 V; (3)Digital Input Voltage to AGND: –0.3 V to VDD + 0.3 V; (4)Digital Output Voltage to AGND: –0.3 V to VDD + 0.3 V; (5)REFIN/REFOUT to AGND: –0.3 V to VDD + 0.3 V; (6)Input Current to Any Pin Except Supplies: ±10 mA; (7)Operating Temperature Range Commercial: (A Version): –40℃ to +105℃, (B Version): 0℃ to +105℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Junction Temperature: 150℃; (10)SOIC, TSSOP Package, Power Dissipation: 450 mW; (11)θJA Thermal Impedance: 124.9℃/W (SOIC), 150.4℃/W (TSSOP); (12)θJC Thermal Impedance: 42.9℃/W (SOIC), 27.6℃/W (TSSOP); (13)Lead Temperature, Soldering: Vapor Phase (60 secs): 215℃, Infrared (15 secs): 220℃; (14)ESD: 1 kV.

Features

AD7888ARU features: (1)Specified for VDD of 2.7 V to 5.25 V; (2)Flexible Power/Throughput Rate Management; (3)Shutdown Mode: 1 μA Max; (4)Eight Single-Ended Inputs; (5)Serial Interface: SPI/QSPI/MICROWIRE/DSP Compatible; (6)16-Lead Narrow SOIC and TSSOP Packages.
