Product Summary

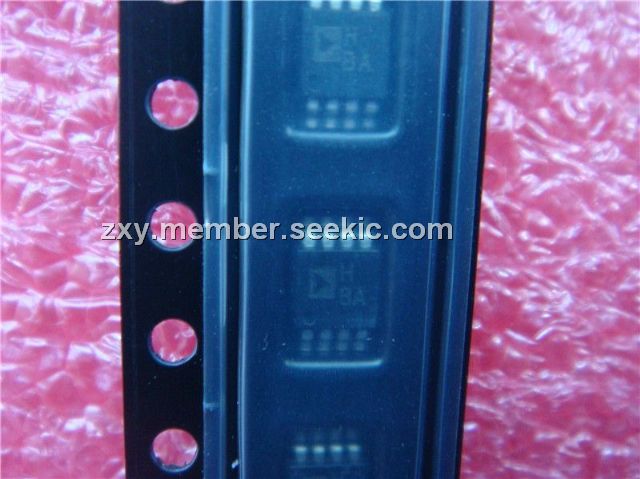

The AD8057ARMZ-REEL7 is a very high performance amplifier with a very low cost. The balance between cost and performance make them ideal for many applications. The AD8057AR will reduce the need to qualify a variety of specialty amplifiers. The applications of AD8057ARMZ-REEL7 include imaging, DVD/CD, photodiode Preamp, A-to-D Driver, professional Cameras and filters.
Parametrics
AD8057ARMZ-REEL7 absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation: Small OutlineêPackage (R) 0.8 W; ; (3)SOT-23-5 Package 0.5 W; μSOIC Package 0.6 W; (4)Input Voltage (Common Mode): ±VS; (5)Differential Input Voltage: ±4.0 V; (6)Output Short Circuit Duration: Observe Power Derating Curves; (7)Storage Temperature Range (R): –65 to +125℃; (8)Operating Temperature Range (A Grade): –40 to +85℃; (9)Lead Temperature Range (Solderingê10êsec): +300℃.
Features
AD8057ARMZ-REEL7 features: (1)Low Cost Single (AD8057) and Dual (AD8058); (2)High Speed: 325 MHz,-3 dB Bandwidth (G = +1),1000 V/μs Slew Rate, Gain Flatness 0.1 dB to 28 MHz; (3)Low Noise: 7 nV/√￣Hz; (4)Low Power: 5.4 mA/Amplifier Typical Supply Current @ +5 V; (5)Low Distortion: -85 dBc @ 5 MHz, RL = 1 kΩ; (6)Wide Supply Range from 3 V to 12 V; (7)Small Packaging: AD8057 Available in SOIC-8 and SOT-23-5; AD8058 Available in SOIC-8 and μSOIC.
Diagrams
 |
