Product Summary

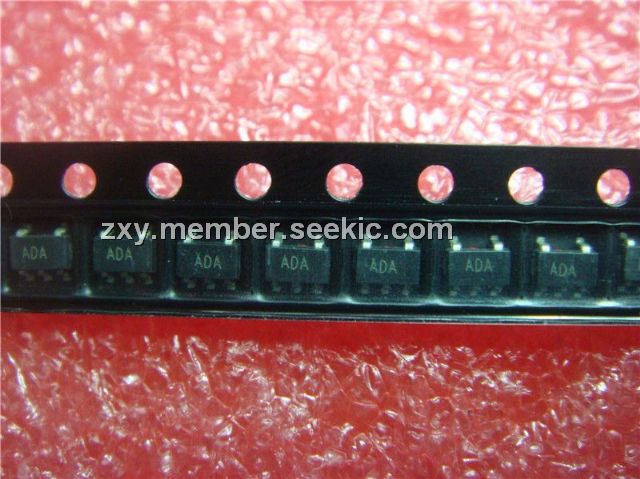

The AD8517ART is a low voltage operational amplifier which brings precision and bandwidth to the SOT-23-5 package even at single supply voltages as low as 1.8 V. The small package makes it possible to place the AD8517ART next to sensors, reducing external noise pickup. The AD8517ART is a rail-to-rail input and output bipolar amplifier with a gain bandwidth of 7 MHz and typical voltage offset of 1.3 mV from a 1.8 V supply. The low supply current makes these parts ideal for battery-powered applications. The 8 V/μs slew rate makes the AD8517ART a good match for driving ASIC inputs, such as voice codecs.
Parametrics
AD8517ART absolute maximum ratings: (1)Supply Voltage: 6 V;(2)Input Voltage: GND to VS;(3)Differential Input Voltage: ±0.6 V;(4)Output Short-Circuit Duration: Indefinite for TA < +40°C;(5)Storage Temperature Range R, RM and RT Packages: -65°C to +150°C;(6)Operating Temperature Range: -40°C to +125°C;(7)Junction Temperature Range R, RM and RT Packages: -65°C to +150°C;(8)Lead Temperature Range (Soldering, 60 sec): 300°C.
Features
AD8517ART features: (1)Single Supply Operation: 1.8 V to 6 V;(2)Space-Saving SOT-23, uSOIC Packaging;(3)Wide Bandwidth: 7 MHz @ 5 V;(4)Low Offset Voltage: 3.5 mV Max;(5)Rail-to-Rail Output Swing and Rail-to-Rail Input;(6)8 V/us Slew Rate;(7)Only 900 uA Supply Current @ 5 V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8517ART-R2 |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT235 T/R |
Data Sheet |
Negotiable |
|
||||||
|
AD8517ART-REEL |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT235 T/R |
Data Sheet |
Negotiable |
|
||||||
|
AD8517ART-REEL7 |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT235 T/R |
Data Sheet |
Negotiable |
|
||||||
|
AD8517ARTZ-R2 |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT23-5 |
Data Sheet |
Negotiable |
|
||||||
|
AD8517ARTZ-REEL |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT23-5 T/R |
Data Sheet |
|
|
||||||
|
AD8517ARTZ-REEL7 |
Analog Devices Inc |
IC OPAMP R-R 7MHZ SOT23-5 T/R |
Data Sheet |
Negotiable |
|
||||||
