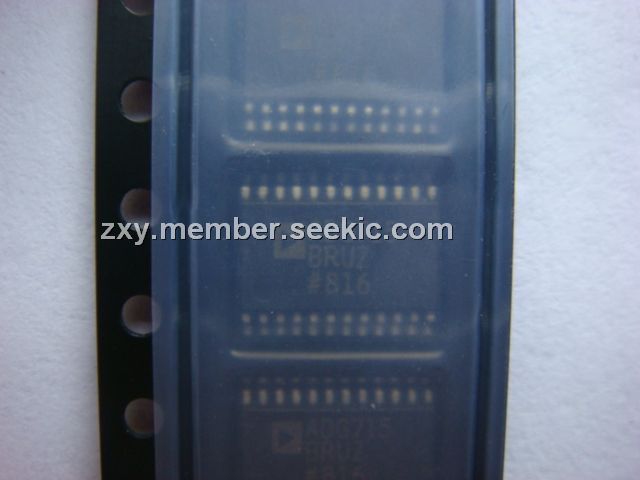

ADG715BRU

switch, TSSOP, –0.3 V to +7 V, single-pole, single-throw, I2C-Compatible Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~5.00

PartNumber:: ADG715BRU

Brand:: Analog Devices - ADI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:ADG715BRU
US $2.00 - 5.00
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

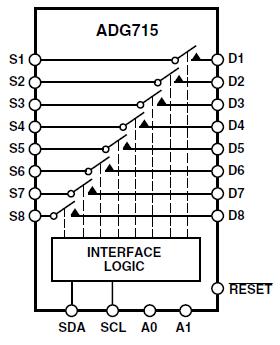

The ADG715BRU is a CMOS, octal SPST (single-pole, single-throw) switch controlled via either a two- or 3-wire serial interface. On resistance is closely matched between switches and very flat over the full signal range. Each switch conducts equally well in both directions and the input signal range extends to the supplies. Data is written to the ADG715BRU in the form of 8 bits, each bit corresponding to one channel. The applications of the ADG715BRU include Data Acquisition Systems, Communication Systems, Relay Replacement, Audio and Video Switching.

Parametrics

ADG715BRU absolute maximum ratings: (1)VDD to VSS: 7 V; (2)VDD to GND: –0.3 V to +7 V; (3)VSS to GND: +0.3 V to –3.5 V; (4)Analog Inputs: VSS – 0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (5)Digital Inputs: –0.3 V to VDD + 0.3 V; (6)or 30 mA, Whichever Occurs First; (7)Peak Current, S or D: 100 mA (Pulsed at 1 ms, 10% Duty Cycle Max); (8)Continuous Current, S or D: 30 mA; (9)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Junction Temperature: 150℃.

Features

ADG715BRU features: (1)ADG714 SPI/QSPI/MICROWIRE-Compatible Interface; (2)ADG715 I2C-Compatible Interface; (3)2.7 V to 5.5 V Single Supply; (4)±3 V Dual Supply; (5)2.5 Ω On Resistance; (6)0.6 Ω On Resistance Flatness; (7)100 pA Leakage Currents; (8)Octal SPST; (9)Power-On Reset; (10)Fast Switching Times; (11)TTL/CMOS-Compatible; (12)Small TSSOP Package.
